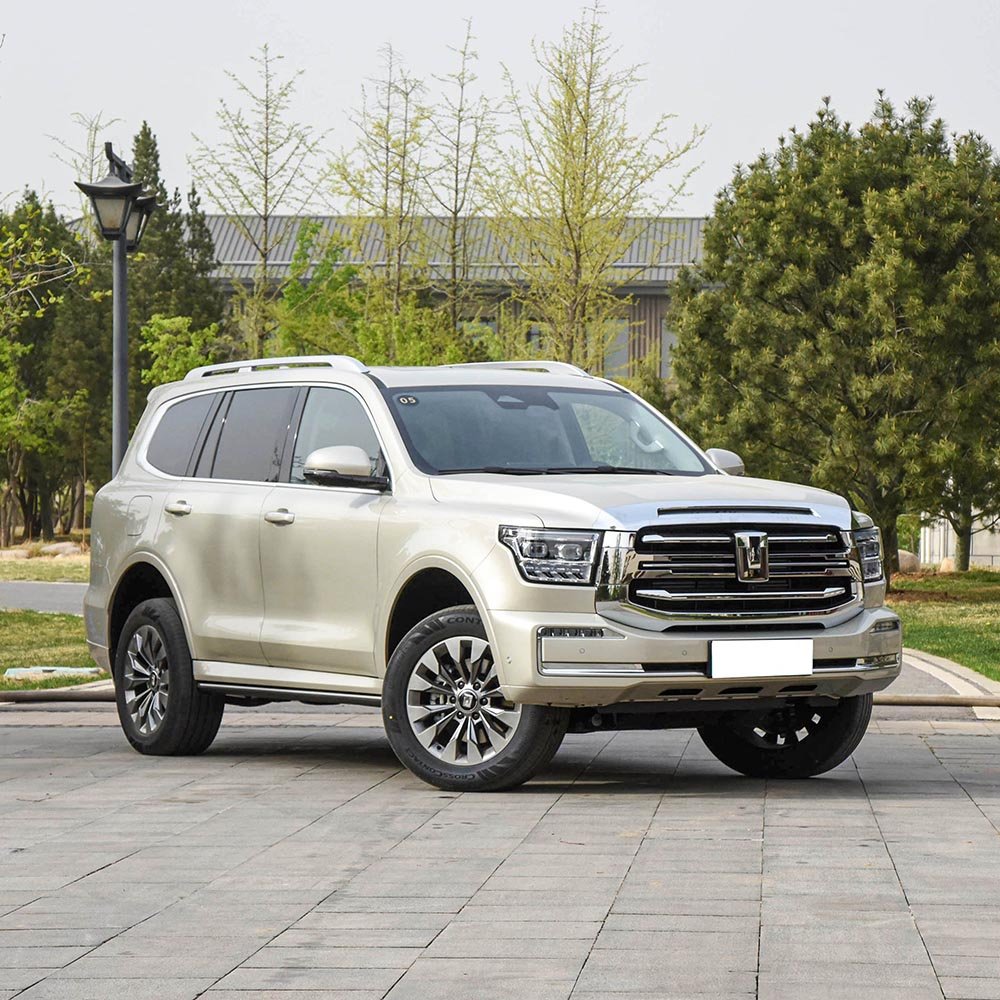

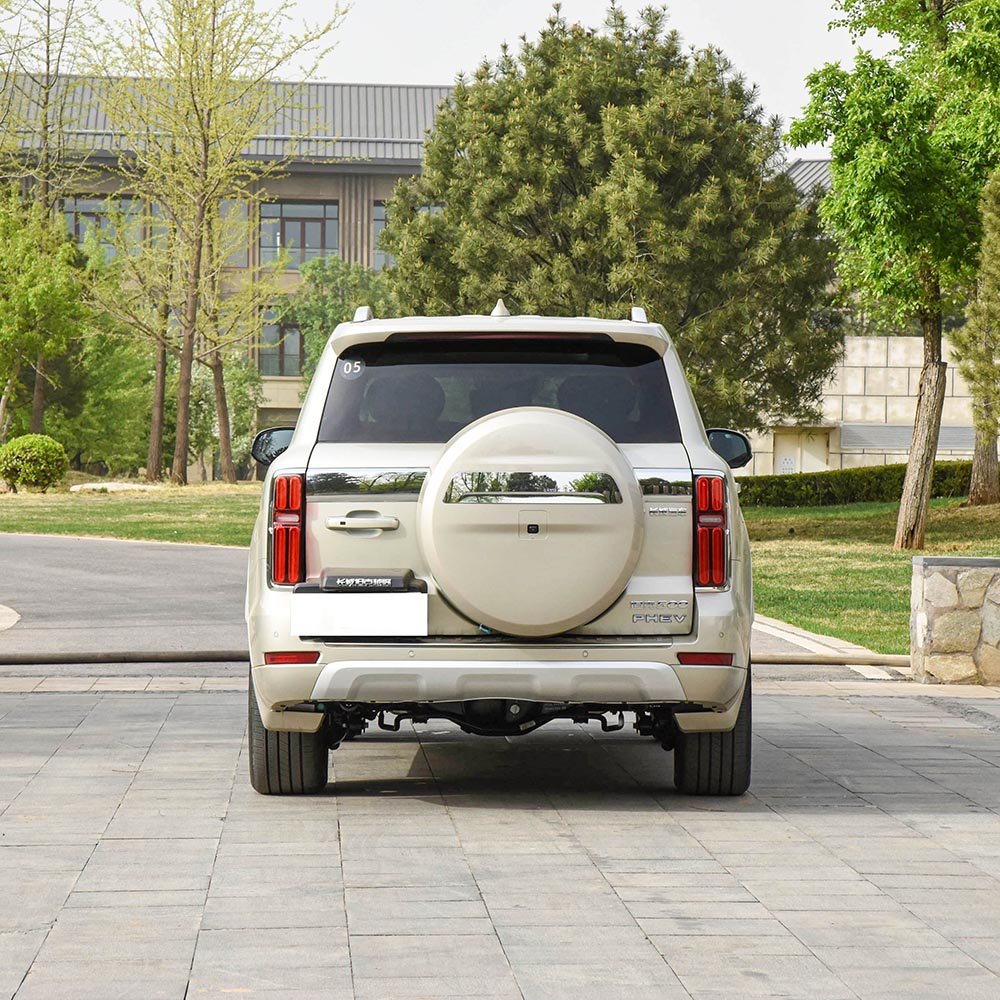

Exterior Design
The Tank 500 Hi4-Z is basically the same as the Tank 500 Hi4-T, with overall styling that is calm and atmospheric, and full of power. The length, width and height of the new car are 5078mm*1934mm*1905mm, and the wheelbase is 2850mm.Officially, the Tank 500 Hi-4-Z has an approach angle of 29°, a departure angle of 24°, and a minimum ground clearance of 210mm.The new car’s rear suspension retains the multilink integral bridge architecture, which is not only structurally stronger, but also increases the probability of grounding the tires with its long suspension stroke, thus further enhancing the ability to get out of trouble. further enhance the ability to get out of trouble.

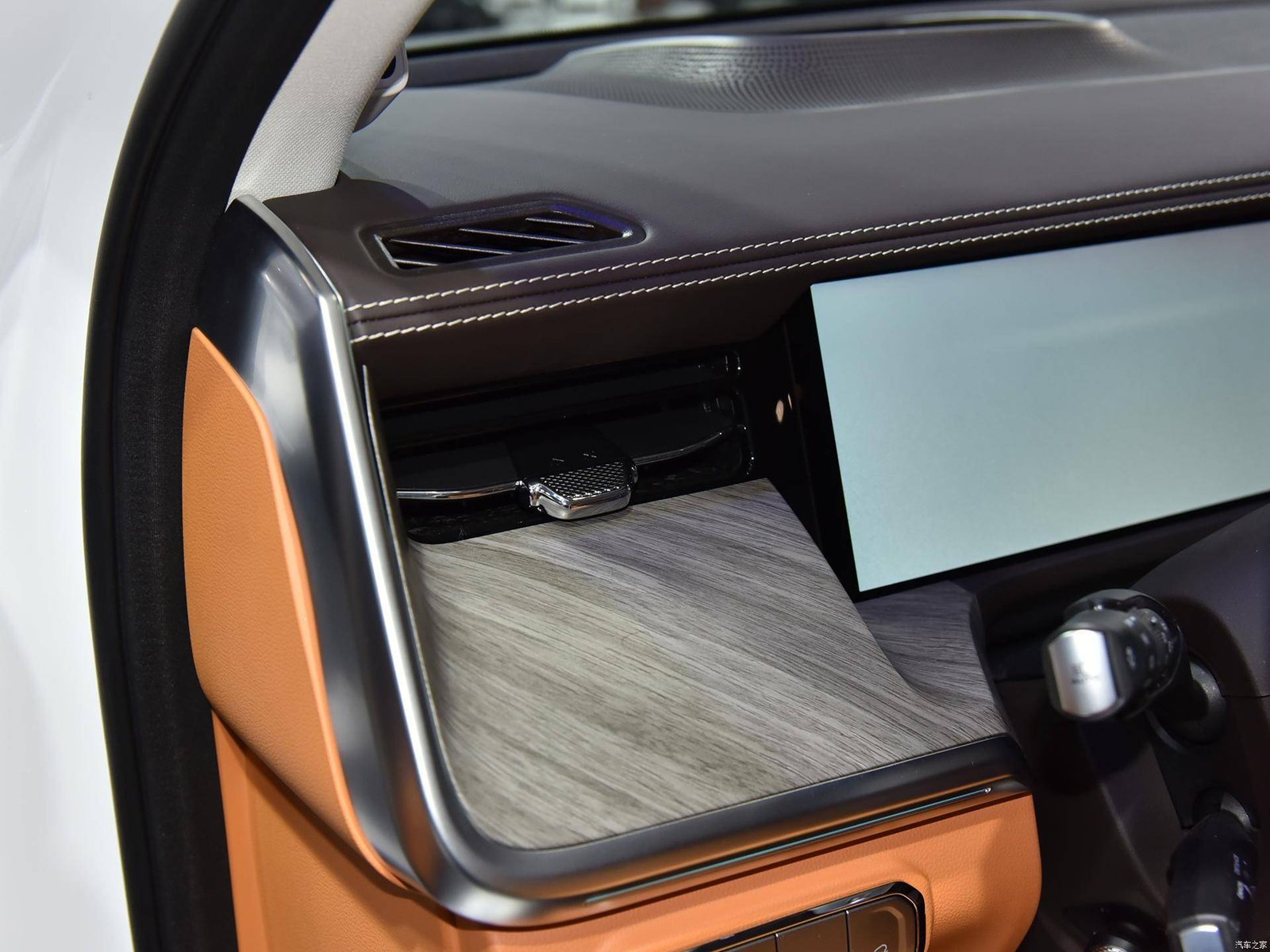

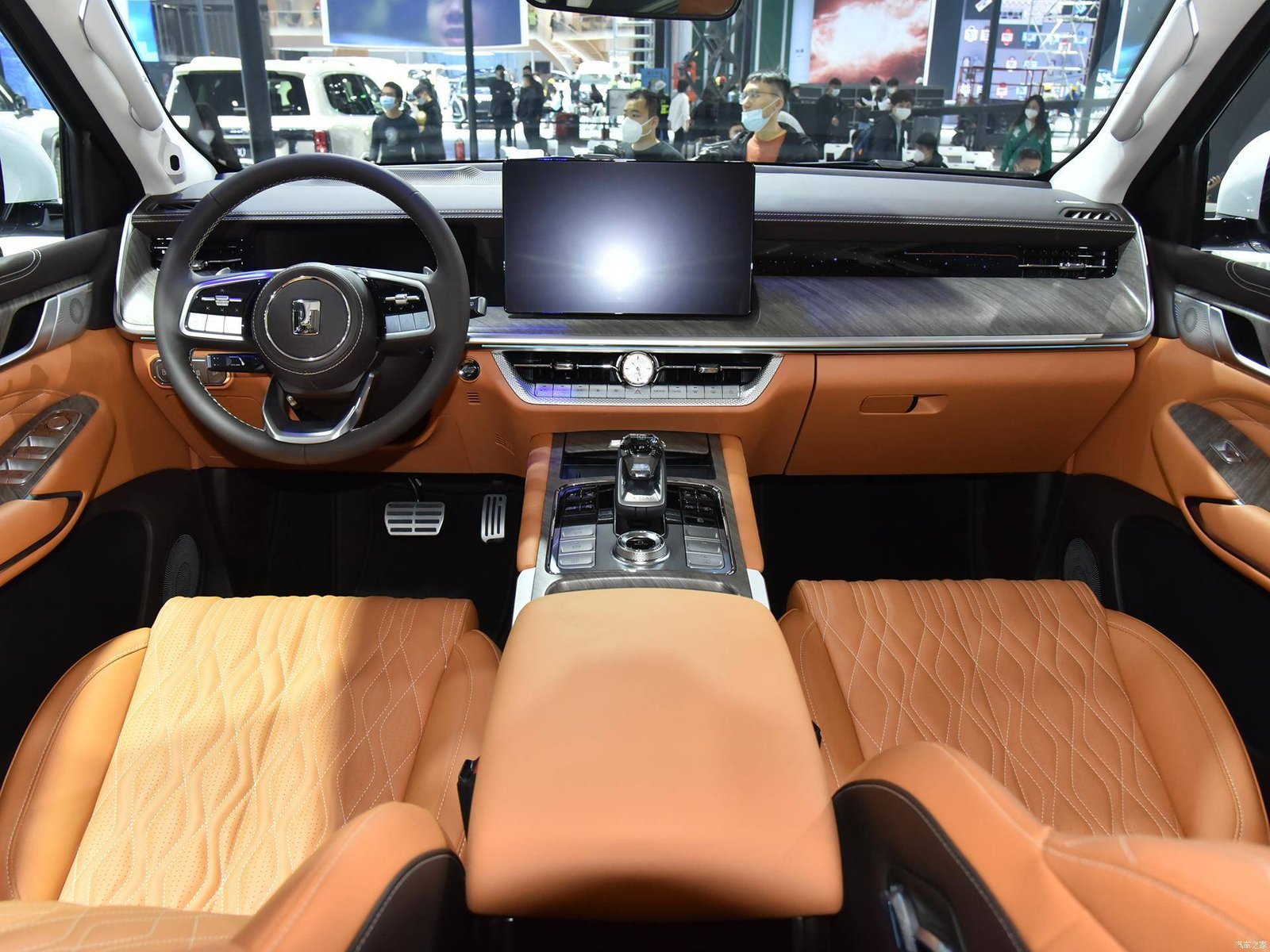

Interior Design

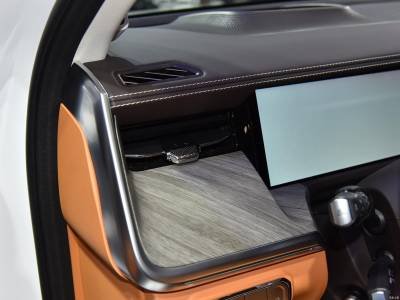

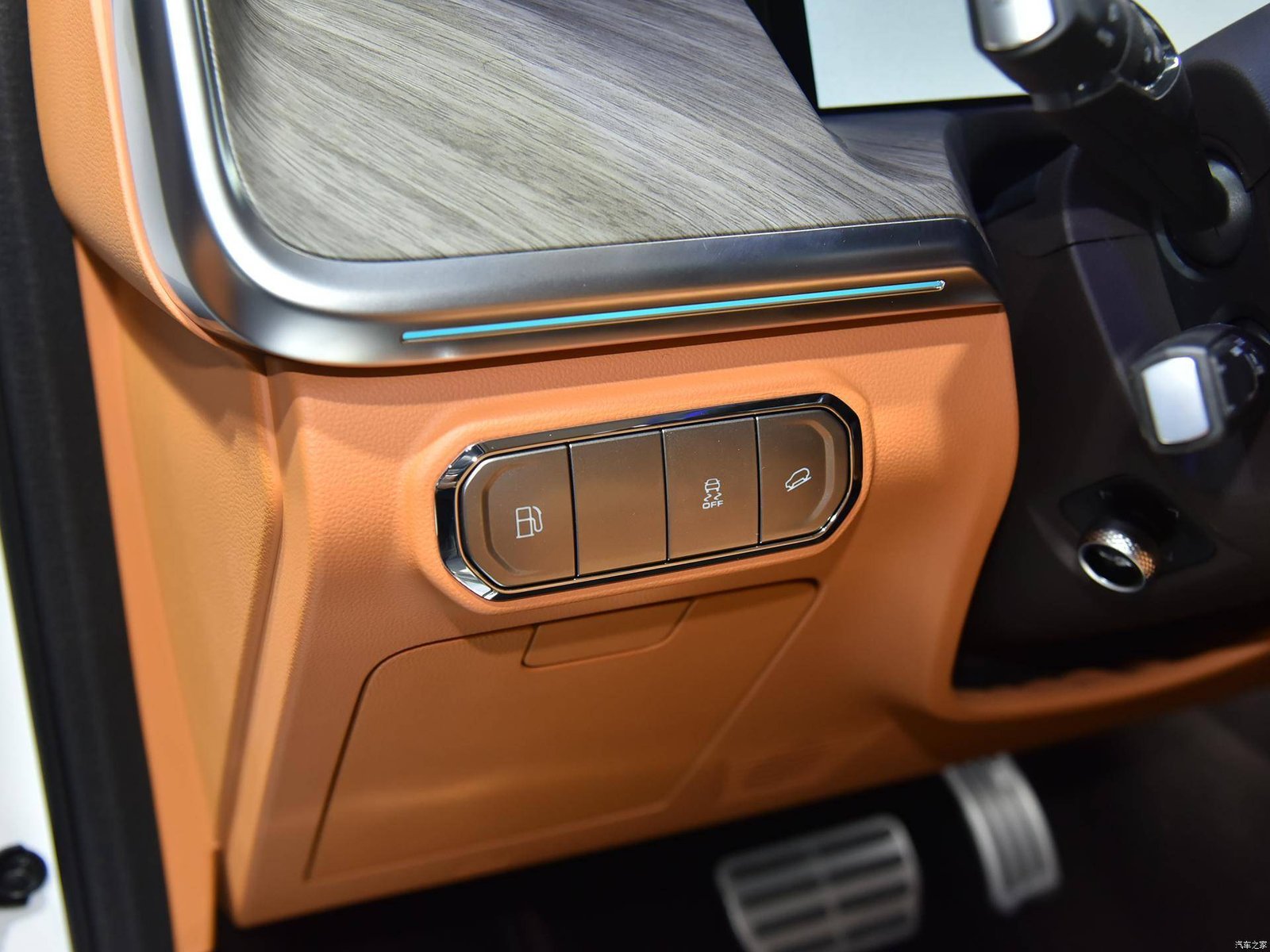

The interior is still familiar with the design layout, symmetrical center console modeling simple and exquisite, through solid workmanship and material performance to create a good sense of quality. Physical buttons are provided below the air conditioning vents and around the gearshift lever, making operation more convenient.
Power
The new car will be equipped with a dual-motor plug-in hybrid system based on a 2.0T engine + front-axle motor + rear-axle motor, with a combined power of 645kW and a total torque of up to 1,195N-m. The transmission system is matched with a three-gear longitudinal hybrid gearbox, and the officially announced acceleration time of 0-100km/h is just 4.6s. The battery capacity is 59.05kWh, with a pure electric range of 201km in WLTC conditions, and a comprehensive range of 201km in WLTC conditions. The new car will be equipped with a dual-motor plug-in hybrid system based on a 2.0T engine + front axle motor + rear axle motor, with a combined power of 645kW and a total torque of up to 1,195N-m. The transmission system is equipped with a three-gear longitudinal hybrid gearbox, and the officially announced acceleration time of 0-100km/h is only 4.6s. The battery capacity is 59.05kWh, the WLTC working condition pure electric range is 201km, and the comprehensive range can reach 1096km.
| 2023 Tank 500 Hi4-T Modified | 2024 Tank 500 Hi4-T Black Knight Edition | |
|---|---|---|
| Basic Information | ||
| Availability | 2024.03 | 2024.1 |
| vehicle class | Mid-size SUV | Mid-size SUV |
| Length*Width*Height(mm) | 5078*1934*1905 | 5078*1934*1905 |
| Type of energy | plug-in hybrid | plug-in hybrid |
| NEDC pure electric range (km) | 120 | 120 |
| WLTC pure electric range (km) | 110 | 110 |
| Combined system power (kW) | 300 | 300 |
| Combined system torque (N-m) | 750 | 750 |
| motor | 2.0T / 252 hp / in-line 4-cylinder | 2.0T / 252 hp / in-line 4-cylinder |
| Maximum power (kW) | 185 | 185 |
| Maximum torque (N-m) | 380 | 380 |
| Number of gears | 9 | 9 |
| transmission | automated manual transmission (e.g. gas and electricity supply) | automated manual transmission (e.g. gas and electricity supply) |
| Maximum speed (km/h) | 180 | 180 |
| 0-100km/h acceleration(s) | 6.9 | 6.9 |
| WLTC Combined Fuel Consumption (L/100km) | 2.06 | 2.06 |
| Battery Type | Ternary lithium battery | Ternary lithium battery |
| Battery capacity (kWh) | 37.1 | 37.1 |
| Fast charging time (h) | 0.4 | 0.4 |
| Fast charging capacity (%) | 30-80 | 30-80 |
| Warranty Policy | Five years or 150,000 kilometers | Five years or 150,000 kilometers |
| body of automobile | ||
| Length (mm) | 5078 | 5078 |
| Width (mm) | 1934 | 1934 |
| Height (mm) | 1905 | 1905 |
| Wheelbase (mm) | 2850 | 2850 |
| Front wheelbase(mm) | 1635 | 1635 |
| Rear wheelbase(mm) | 1635 | 1635 |
| Weight (kg) | 2830 | 2830 |
| Maximum full load mass (kg) | 3330 | 3330 |
| Fuel tank volume (L) | 70 | 70 |
| Number of doors (pcs) | 5 | 5 |
| Number of seats (pcs) | 5 | 5 |
| Approach angle (°) | 29.5 | 29.5 |
| Departure angle (°) | 24 | 24 |
| Sport Appearance Package | ● | ● |
| motor | ||
| Displacement (mL) | 1998 | 1998 |
| Engine Model | E20NB | E20NB |
| Maximum horsepower (Ps) | 252 | 252 |
| Maximum power (kW) | 185 | 185 |
| Maximum net power (kW) | 180 | 180 |
| Maximum power speed(rpm) | 6000 | 6000 |
| Maximum torque (N-m) | 380 | 380 |
| Maximum torque speed (rpm) | 1700-4000 | 1700-4000 |
| cylinder (engine) | Inline 4-cylinder | Inline 4-cylinder |
| Auto start/stop engine | ● | ● |
| engine position | preamplifier | preamplifier |
| Intake form | turbocharged | turbocharged |
| valve train | double overhead camshaft | double overhead camshaft |
| Lubrication method | direct injection | direct injection |
| Cylinder material | aluminum | aluminum |
| fuel grade | 92# | 92# |
| environmental standard | Country 6 | Country 6 |
| electric motor | ||
| Total motor power (kW) | 120 | 120 |
| Total motor torque (N-m) | 400 | 400 |
| Combined system power (kW) | 300 | 300 |
| Combined system torque (N-m) | 750 | 750 |
| NEDC pure electric range (km) | 120 | 120 |
| WLTC pure electric range (km) | 110 | 110 |
| Battery capacity (kWh) | 37.1 | 37.1 |
| 100km power consumption (kWh/100km) | 24.5 | 24.5 |
| Minimum charge state fuel consumption (L/100km) | 8.8 | 8.8 |
| Slow charging time (h) | 6.5 | 6.5 |
| Fast charging time (h) | 0.4 | 0.4 |
| Motor structure | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization |
| Number of drive motors | single motor | single motor |
| Motor Layout | preamplifier | preamplifier |
| Battery Type | Ternary lithium battery | Ternary lithium battery |
| Battery Cell Brands | Ningde Times | Ningde Times |
| Battery cooling method | liquid cooling | liquid cooling |
| fast charging function | be in favor of | be in favor of |
| Fast charging capacity (%) | 30-80 | 30-80 |
| energy recovery | 1 | 1 |
| Battery Pack Warranty | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) |
| Battery preheating | ● | ● |
| external discharge | ● | ● |
| Chassis/steering | ||
| Driving form | four-wheel drive | four-wheel drive |
| Front suspension type | double wishbone independent suspension | double wishbone independent suspension |
| Rear suspension type | Multi-link non-independent suspension | Multi-link non-independent suspension |
| Center Differential Structure | multiplate clutch | multiplate clutch |
| Steering assist form | electric power assist | electric power assist |
| peristaltic mode | ● | ● |
| Tank Turn | ● | ● |
| Trailer pickup port | ○ | ● |
| trailer hitch | ○Manual | ● Manual |
| Wheels/Brakes | ||
| Front/Rear Brake Type | Ventilated tray type | Ventilated tray type |
| Parking brake type | electronic parking | electronic parking |
| Front Tire Specification | 265/55 R19 | 265/55 R19 |
| Rear Tire Specification | 265/55 R19 | 265/55 R19 |
| Wheel Material | aluminum | aluminum |
| Spare tire specification | full size | full size |
| Active/passive safety features | ||
| ABS anti-lock | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● |
| Brake Assist (BA/EBA/BAS etc.) | ● | ● |
| Traction control (ASR/TCS/TRC etc.) | ● | ● |
| Stability Control (ESC/ESP/DSC etc.) | ● | ● |
| Active braking/safety systems | ● | ● |
| merging aid | ● | ● |
| lane keeping assist system | ● | ● |
| lane departure warning | ● | ● |
| Road traffic signage recognition | ● | ● |
| Low Speed Warning | ● | ● |
| Fatigue Driving Alerts | ● | ● |
| DOW Open Door Alert | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | |
| ●Side airbags | ●Side airbags | |
| ●Head airbags (air curtains) | ●Head airbags (air curtains) | |
| Rear airbags | ●Head airbags (air curtains) | ●Head airbags (air curtains) |
| Tire Pressure Detection Device | ●Display | ●Display |
| Seat Belt Reminder | ● Full vehicle | ● Full vehicle |
| ISOFIX child restraints | ● | ● |
| Forward Collision Warning | ● | ● |
| Rear Collision Warning | ● | ● |
| Anti-Rollover System | ● | ● |
| Auxiliary/Manipulation Configurations | ||
| parking radar | ●Forward | ●Forward |
| ● Post | ● Post | |
| Driver Assistance Video | ●360-degree panoramic image | ●360-degree panoramic image |
| ●Vehicle side blind spot image | ●Vehicle side blind spot image | |
| Transparent chassis/540 degree image | ● | ● |
| Reverse vehicle side warning system | ● | ● |
| cruise control | ●Adaptive cruise at all speeds | ●Adaptive cruise at all speeds |
| Driving Mode Switching | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | |
| :: Snow | :: Snow | |
| ● Off-road | ● Off-road | |
| steep incline and slow descent | ● | ● |
| hill-holding aid | ● | ● |
| automatic parking | ● | ● |
| automatic parking | ● | ● |
| follow the trail and reverse | ● | ● |
| Center differential locking function | ● | ● |
| Limited Slip Differential/Differential Lock | ● | ● |
| Assisted driving level | ●L2 | ●L2 |
| low-speed four-wheel drive | ● | ● |
| External/anti-theft configurations | ||
| skylights | ●Openable panoramic sunroof | ●Openable panoramic sunroof |
| roof rack | ● | ● |
| Electric Suction Door | ● | ● |
| Side footrests | ● Electric | ● Electric |
| Key Type | ●Remote key | ●Remote key |
| Keyless entry | ● | ● |
| Keyless Start System | ● | ● |
| Remote start function | ● | ● |
| Central locking in the car | ● | ● |
| electronic immobilizer | ● | ● |
| Internal Configuration | ||

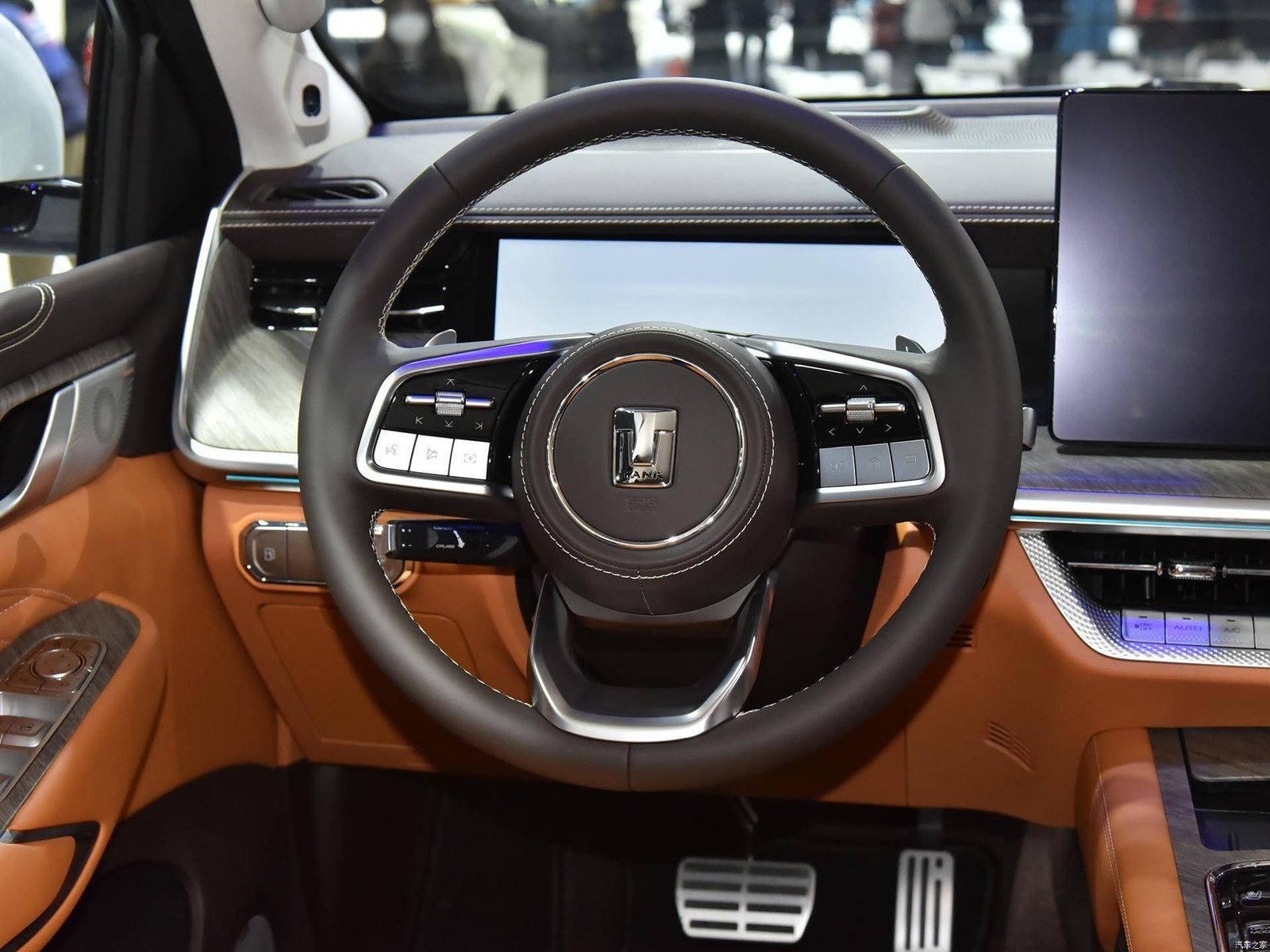

| Steering wheel material | ● Leather | ● Leather |
| Steering Wheel Adjustment | ● Electric | ● Electric |
| Adjustable up and down | Adjustable up and down | |
| Adjustable front and rear | Adjustable front and rear | |

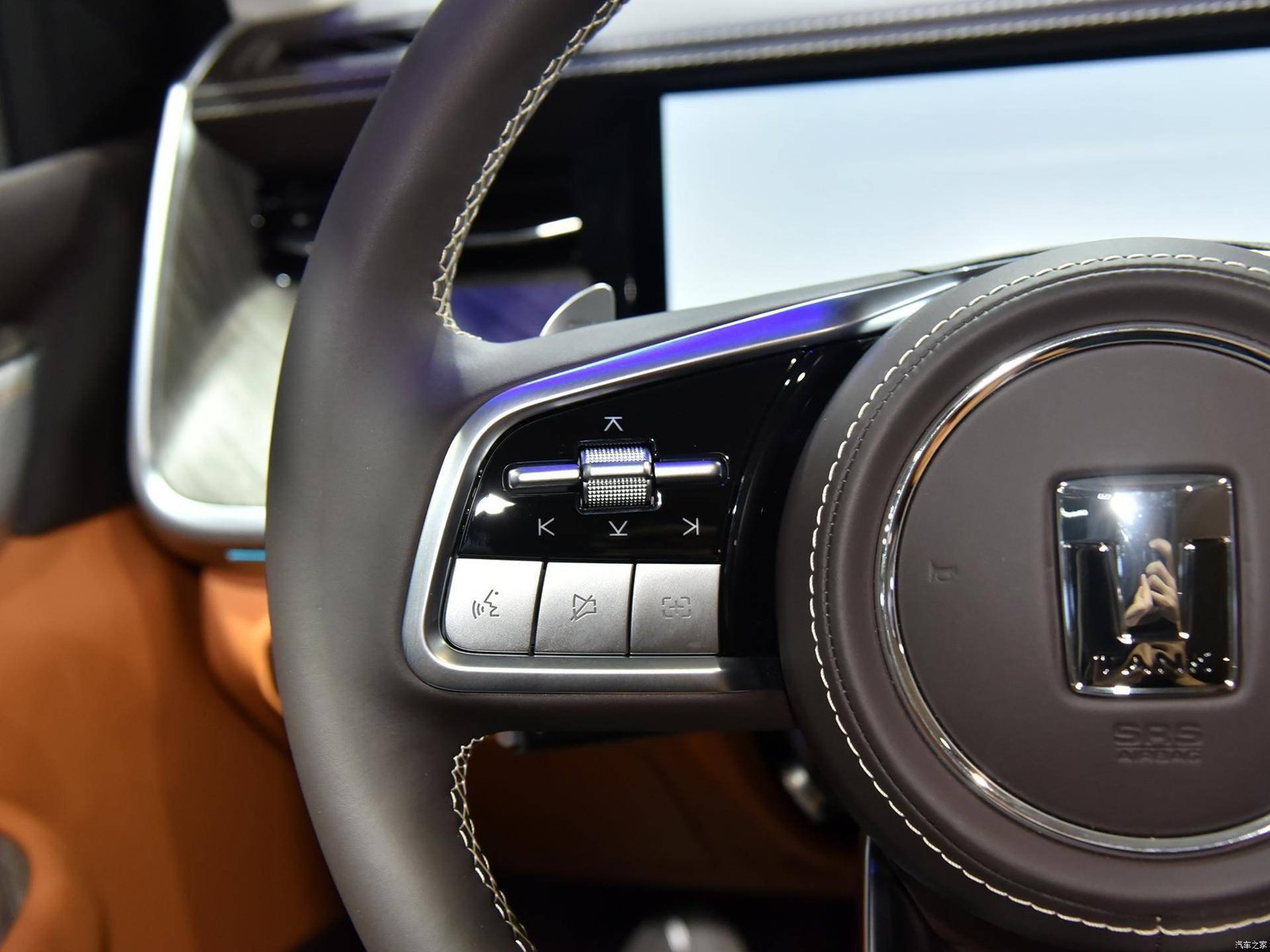

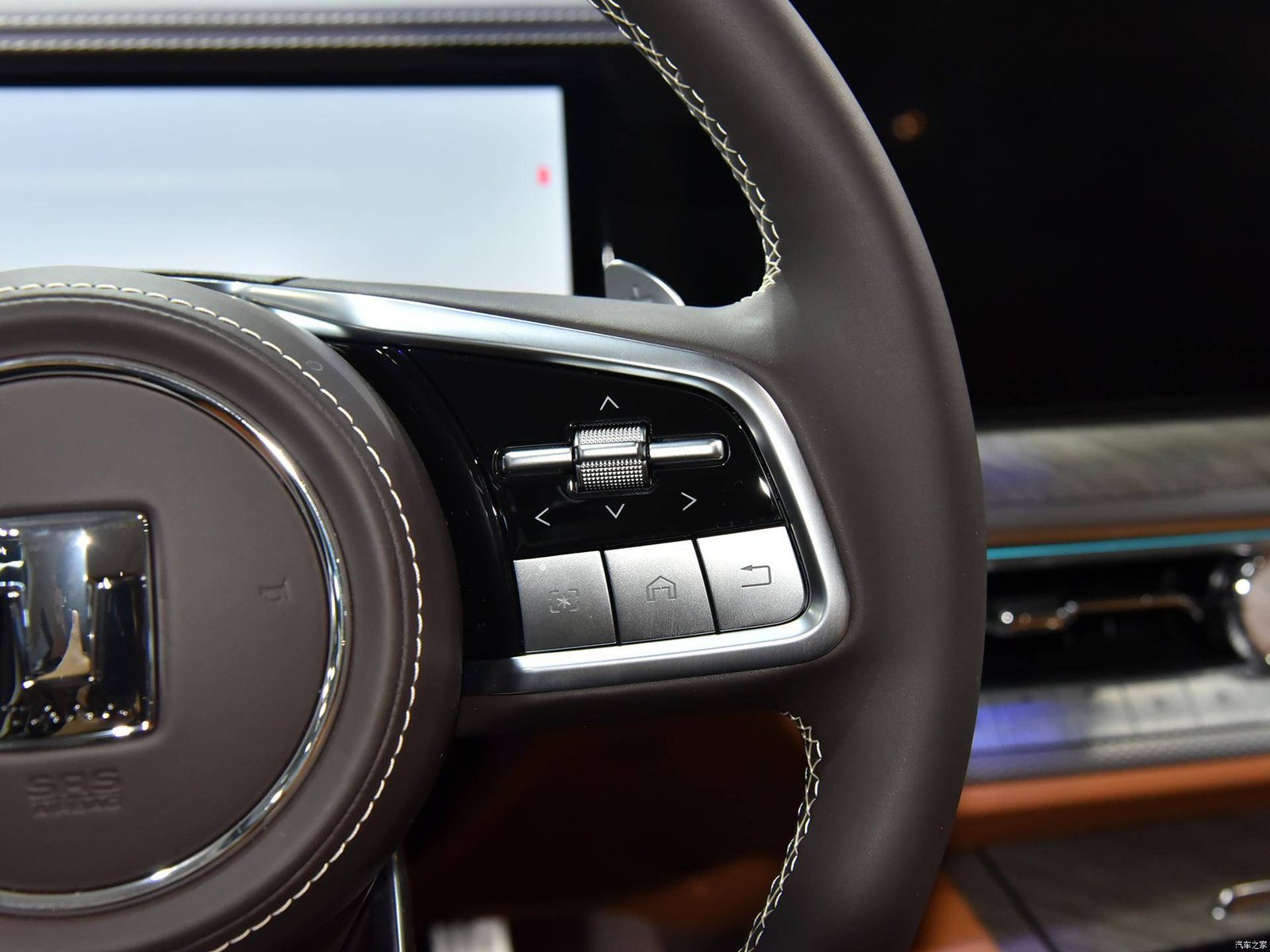

| Steering wheel functions | ●Heating | ●Heating |
| :: Memory | :: Memory | |
| :: Multifunctionality | :: Multifunctionality | |
| ●Shift paddles | ●Shift paddles | |

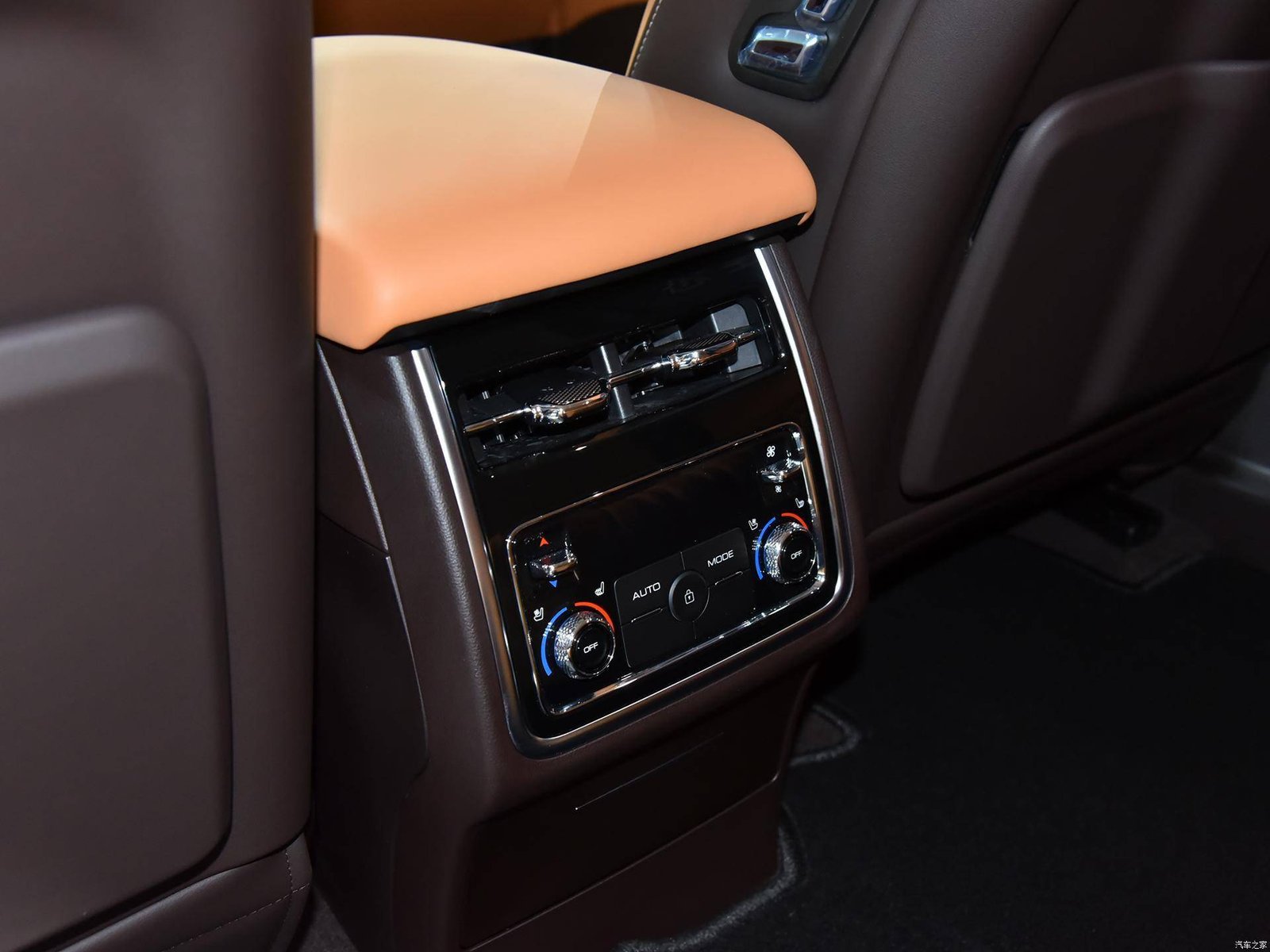

| center armrest | ●Forward | ●Front |
| ● Post | ● Post | |

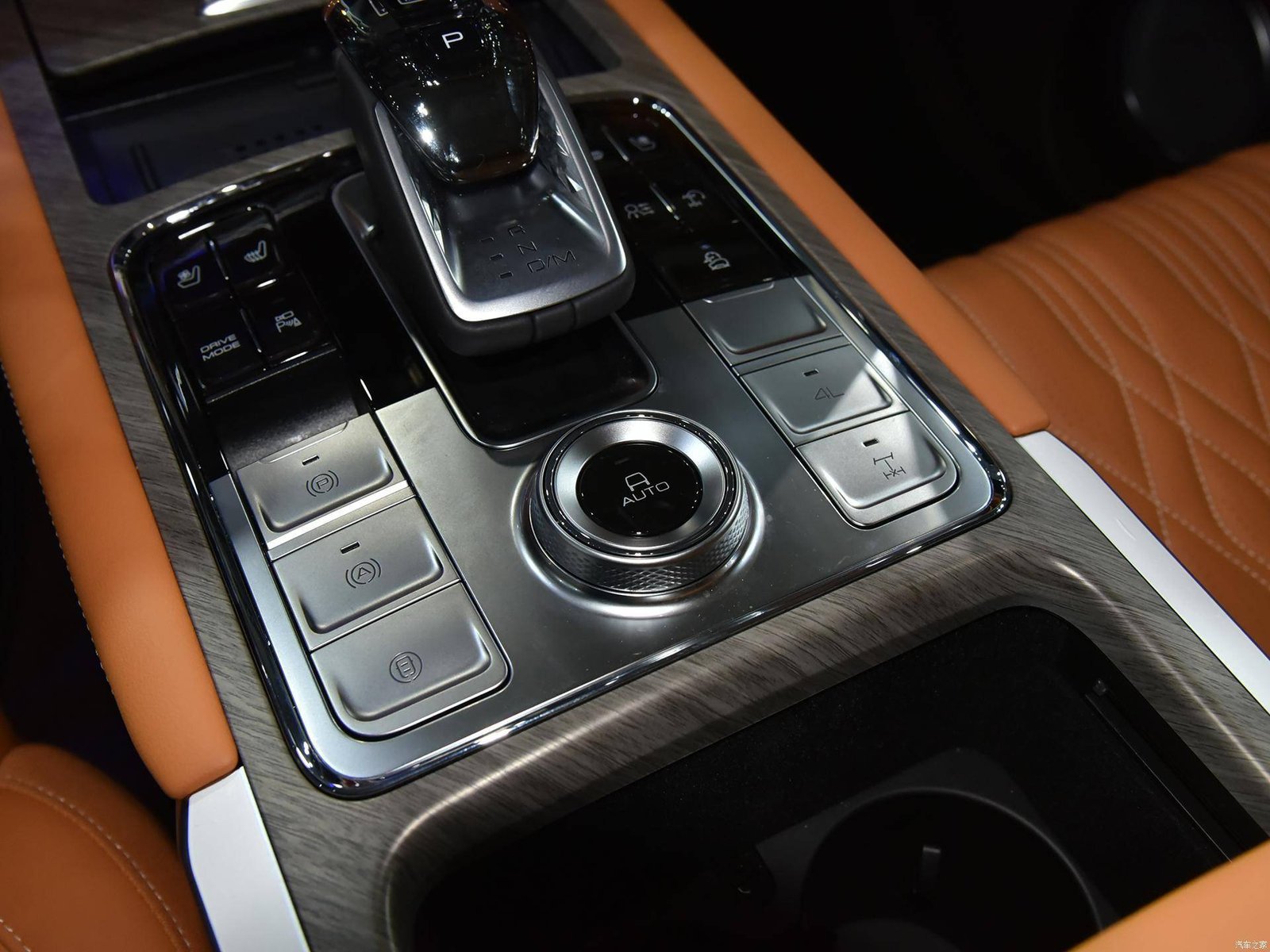

| Gear Shift Form | ●Electronic gearshift | ●Electronic gearshift |
| Sun visor vanity mirror | ● | ● |
| Full LCD instrument cluster | ● | ● |
| Liquid crystal instrument size | 12.3 in. | 12.3 in. |
| HUD Head-Up Display | ● | ● |
| Built-in car recorder | ● | ● |
| active noise reduction | ● | ● |

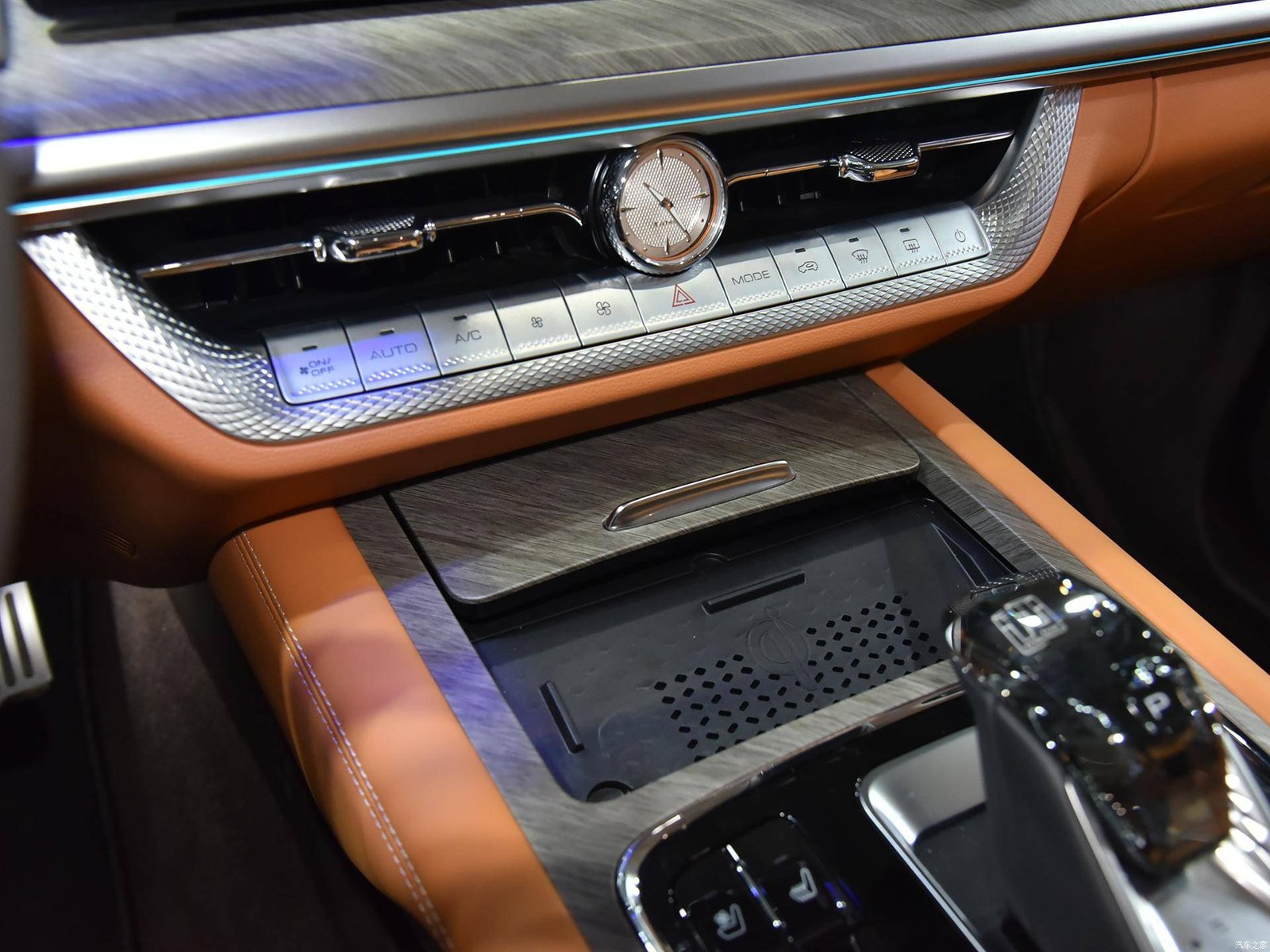

| Wireless charging function for cell phones | ● Front row | ● Front row |
| ETC device | ● | ● |
| Intelligent Hardware | ||
| Forward Sensing Camera | :: Monocular | :: Monocular |
| Number of cameras | ● 5 | ● 5 |
| Number of ultrasonic radars | :: 12 | :: 12 |
| Number of millimeter-wave radars | :: 2 | :: 2 |
| Wake-on-Speech Recognition | :: Bi-regional | :: Bi-regional |
| seating | ||

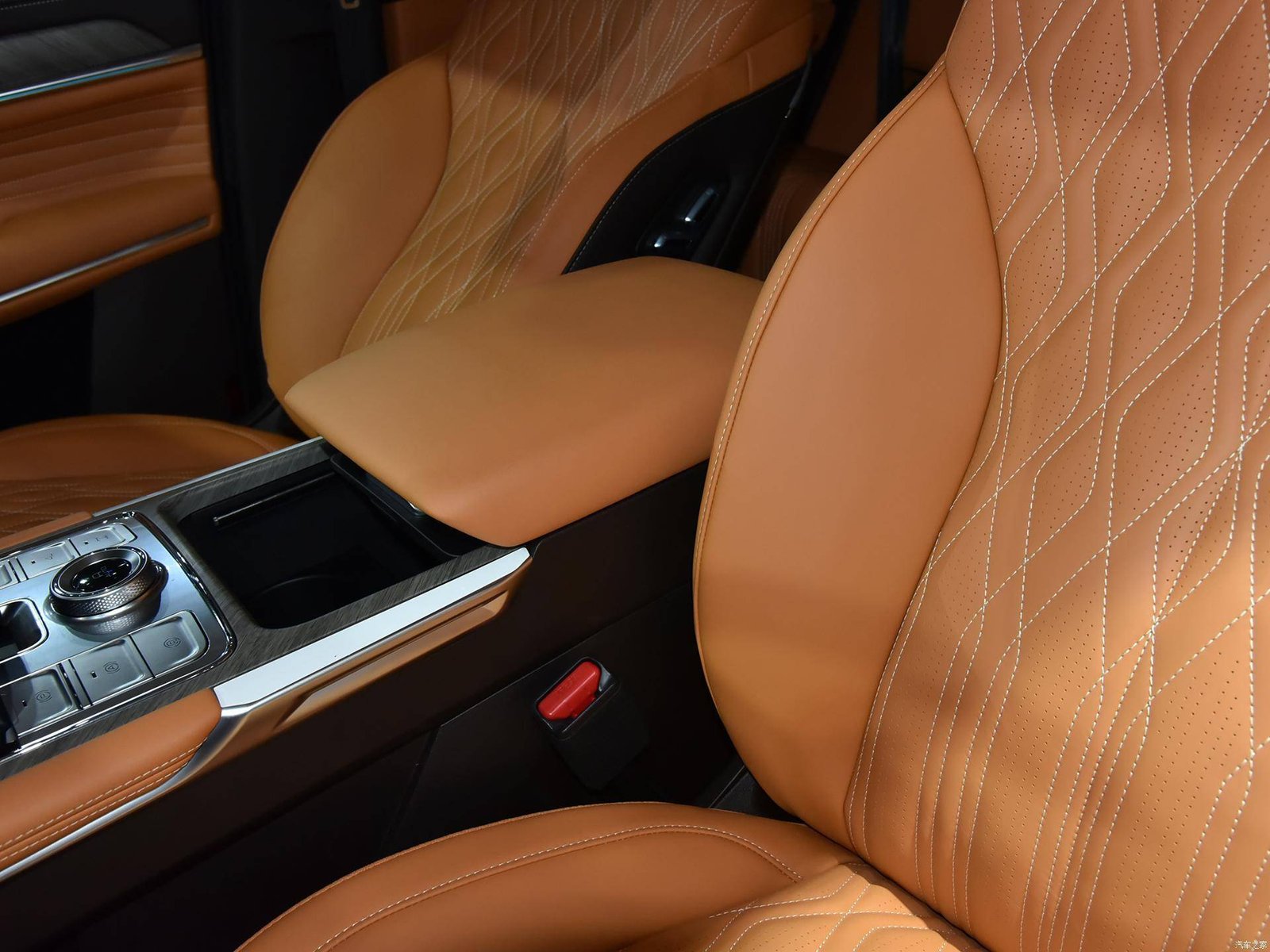

| Seat Material | ● Leather | ● Leather |
| Front Seat Function | ●Heating | ●Heating |
| :: Ventilation | :: Ventilation | |
| ●Massage (driver's seat only) | ●Massage (driver's seat only) | |
| ○Massage (passenger seat only) | ○Massage (passenger seat only) | |

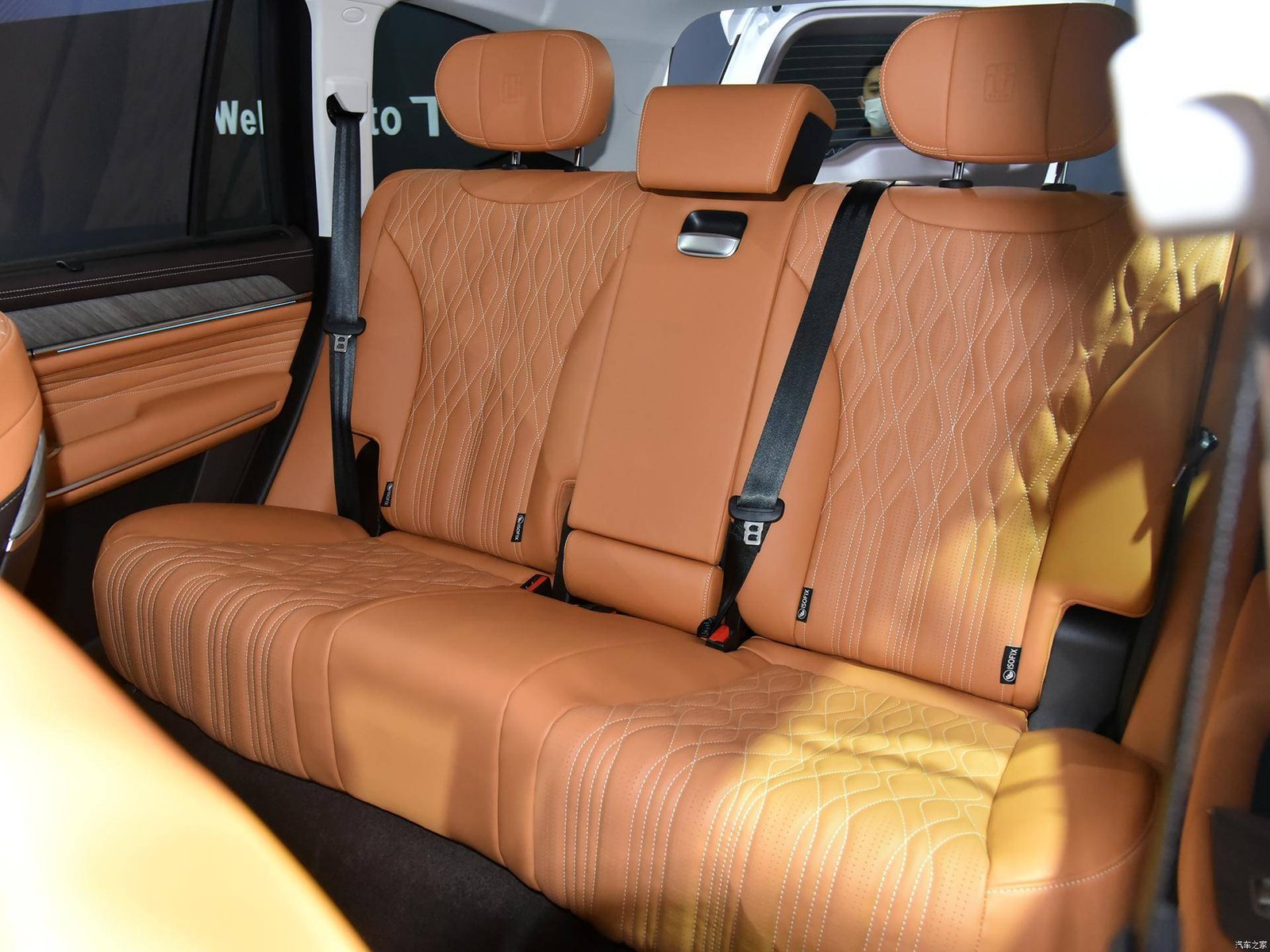

| Second row seat function | ●Heating | ●Heating |
| :: Ventilation | :: Ventilation | |
| ○Massage | ○Massage | |
| Seat electric adjustment | ●Principal Driver | ●Principal Driver |
| ●Passenger | ●Passenger | |
| Main seat adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | |
| ●High/low adjustment (4-way) | ●High/low adjustment (4-way) | |
| ●Lumbar support (4-way) | ●Lumbar support (4-way) | |
| Adjustment of passenger seat | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | |
| ●High/low adjustment (2-way) | ●High/low adjustment (2-way) | |
| Second row seat adjustment | ●Angle adjustable | ●Angle adjustable |
| ●Proportional lowering | ●Proportional lowering | |
| Rear Cup Holder | ● | ● |
| multimedia | ||
| Large color screen in the center console | ●Touch LCD | ●Touch LCD |
| satellite navigation system | ● | ● |
| Navigating the road information display | ● | ● |
| Map Branding | ●Gold | ●Gold |
| Roadside assistance calls | ● | ● |
| Mobile APP Remote Function | ● | ● |
| Bluetooth/Car Phone | ● | ● |
| Cell phone connectivity/mapping | ●Support HUAWEI HiCar | ●Support HUAWEI HiCar |
| ●Carlink support | ●Carlink support | |
| Audio Brand Name | Infinity Yan Fei Li Si | Infinity Yan Fei Li Si |
| Number of audio speakers | 12 | 12 |
| Voice Recognition Control System | :: Multimedia systems | :: Multimedia systems |
| :: Navigation | :: Navigation | |
| :: Telephone | :: Telephone | |
| :: Air conditioning | :: Air conditioning | |
| ●Sunroof | ●Sunroof | |
| Center screen size | ●14.6 inches | ●14.6 inches |
| speech-free wake-up call | ● | ● |
| Voice assistant wake words | :: Tanks | :: Tanks |
| speech recognition | ● | ● |
| 4G/5G networks | ●4G | ●4G |
| Wi-Fi hotspot | ● | ● |
| Telematics | ● | ● |
| OTA upgrade | ● | ● |
| Rear LCD | ● | ● |
| Number of rear multimedia screens | :: 1 | :: 1 |
| Rear LCD screen size | ●7 inches | ●7 inches |
| Rear control multimedia | ● | ● |
| Interface Support | ●USB port | ●USB port |
| ●Type-C port | ●Type-C port | |
| ●SD interface | ●SD interface | |
| Number of USB/Type-C ports | :: 2 front/2 rear | :: 2 front/2 rear |
| Power Support | 12V power supply for luggage compartment | 12V power supply for luggage compartment |
| ●220V/230V power supply | ●220V/230V power supply | |
| app store | ● | ● |
| illumination | ||
| low beam (headlights) | ●LED | ●LED |
| high beam (headlights) | ●LED | ●LED |
| LED daytime running lights | ● | ● |
| Adaptive high and low beam | ● | ● |
| Adjustable headlights | ● | ● |
| Automatic headlights | ● | ● |
| Delayed headlight off | ● | ● |
| front fog lights (of a motor vehicle) | ● | ● |
| auxiliary steering light | ● | ● |
| Interior ambient lighting | ● | ● |
| Active ambient lighting | ● | ● |
| Touch Reading Lamp | ● | ● |
| Glass/Mirror | ||
| power window | ●Forward | ●Forward |
| ● Post | ● Post | |
| One-touch window lifting | ● Full vehicle | ● Full vehicle |
| Anti Window Pinch Handle | ● | ● |
| rearview mirror | ●Motorized adjustment | ●Motorized adjustment |
| :: Electric folding | :: Electric folding | |
| :: Memory | :: Memory | |
| ●Heating | ●Heating | |
| ●Automatic folding for locking the car | ●Automatic folding for locking the car | |
| ●Automatic reversing down | ●Automatic reversing down | |
| rearview mirror | ●Automatic anti-glare | ●Automatic anti-glare |
| Glass Functions | :: Multi-layer soundproofing | :: Multi-layer soundproofing |
| ● Rear side privacy | ● Rear side privacy | |
| Multi-layer acoustic glass for side windows | ● Front row | ● Front row |
| ● Rear | ● Rear | |
| sunshade | :: Rear side window sunshade | :: Rear side window sunshade |
| inductive wiper | ● | ● |
| rear wiper | ● | ● |
| Air conditioners/refrigerators | ||
| Air conditioning control method | ● Automatic control | ● Automatic control |
| Individual air-conditioning in the rear | ● | ● |
| rear air vent | ● | ● |
| Temperature zone control | ● | ● |
| Air quality monitoring | ● | ● |
| air purification | ● | ● |
| PM2.5 filtration | ● | ● |
Fill out the form to receive a business quote
Ask your question now and receive an answer within one business day.
