Dongfeng Nano EX1 is an all-electric compact SUV under the Dongfeng brand, which has attracted attention in the market for its affordable price and practical configuration. The car is mainly targeted at urban transportation and short-distance family trips, providing an economical and environmentally friendly travel option.

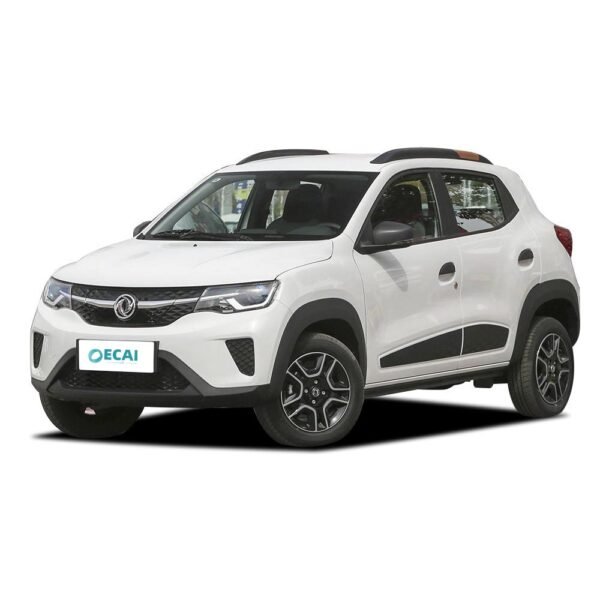

Exterior
The Dongfeng Nano EX1 adopts a simple and modern design language, with a front design center mesh that blends with the headlamp clusters and thick chrome trim to enhance the visual impact of the vehicle. With dimensions of 3732mm/1579mm/1515mm and a wheelbase of 2423mm, the overall shape of the vehicle is compact and suitable for flexible driving on city roads.
Interior

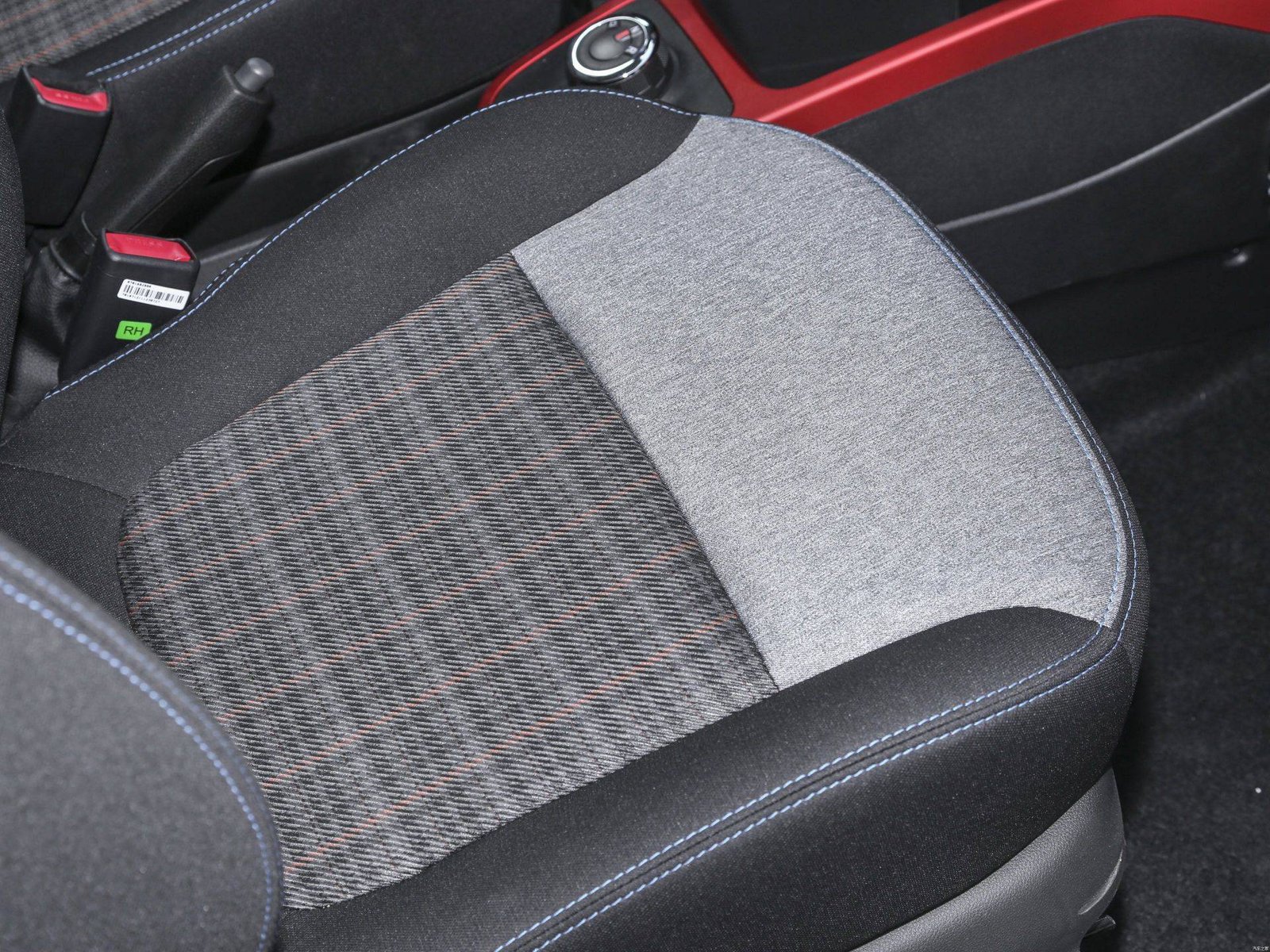

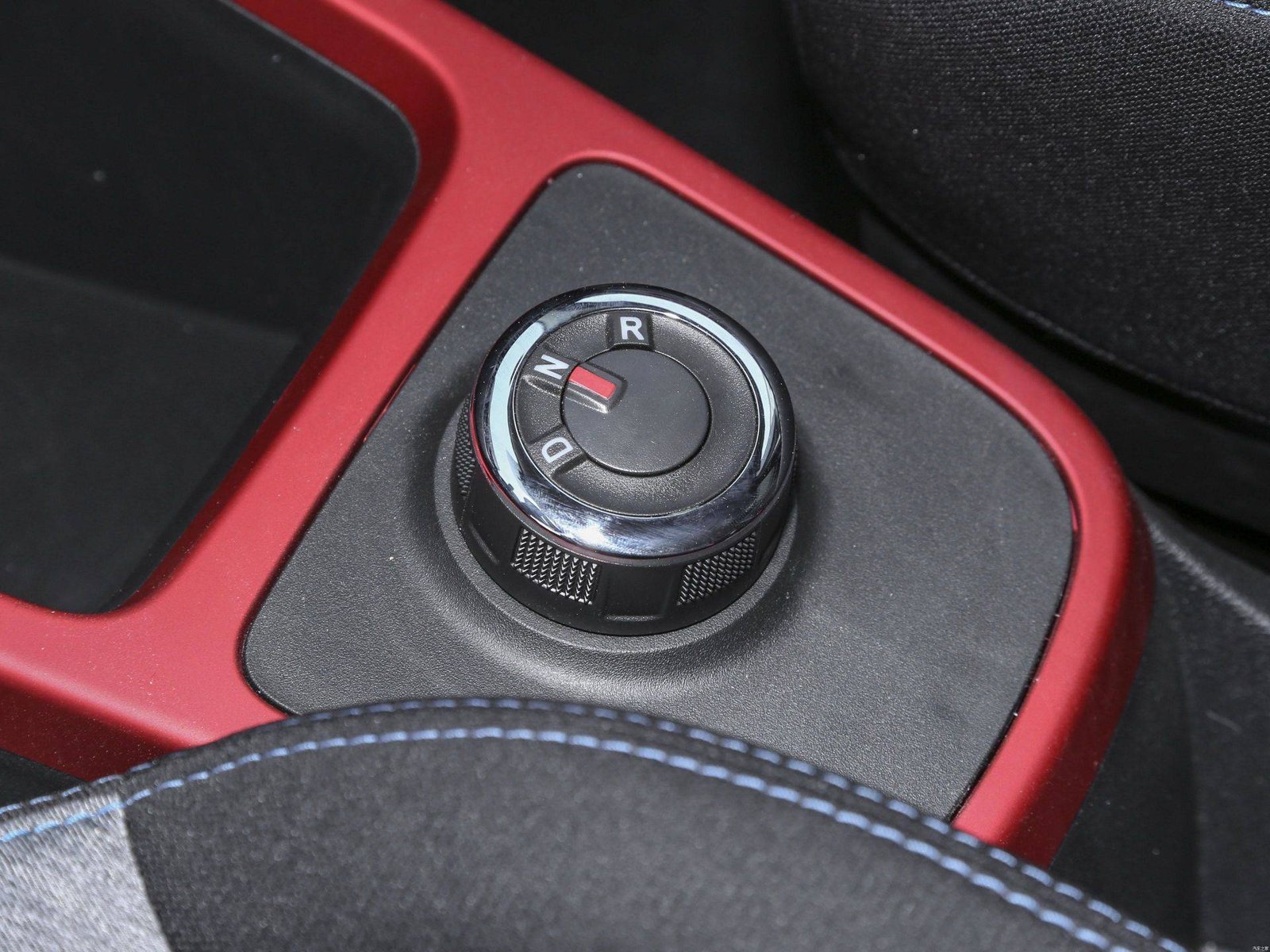

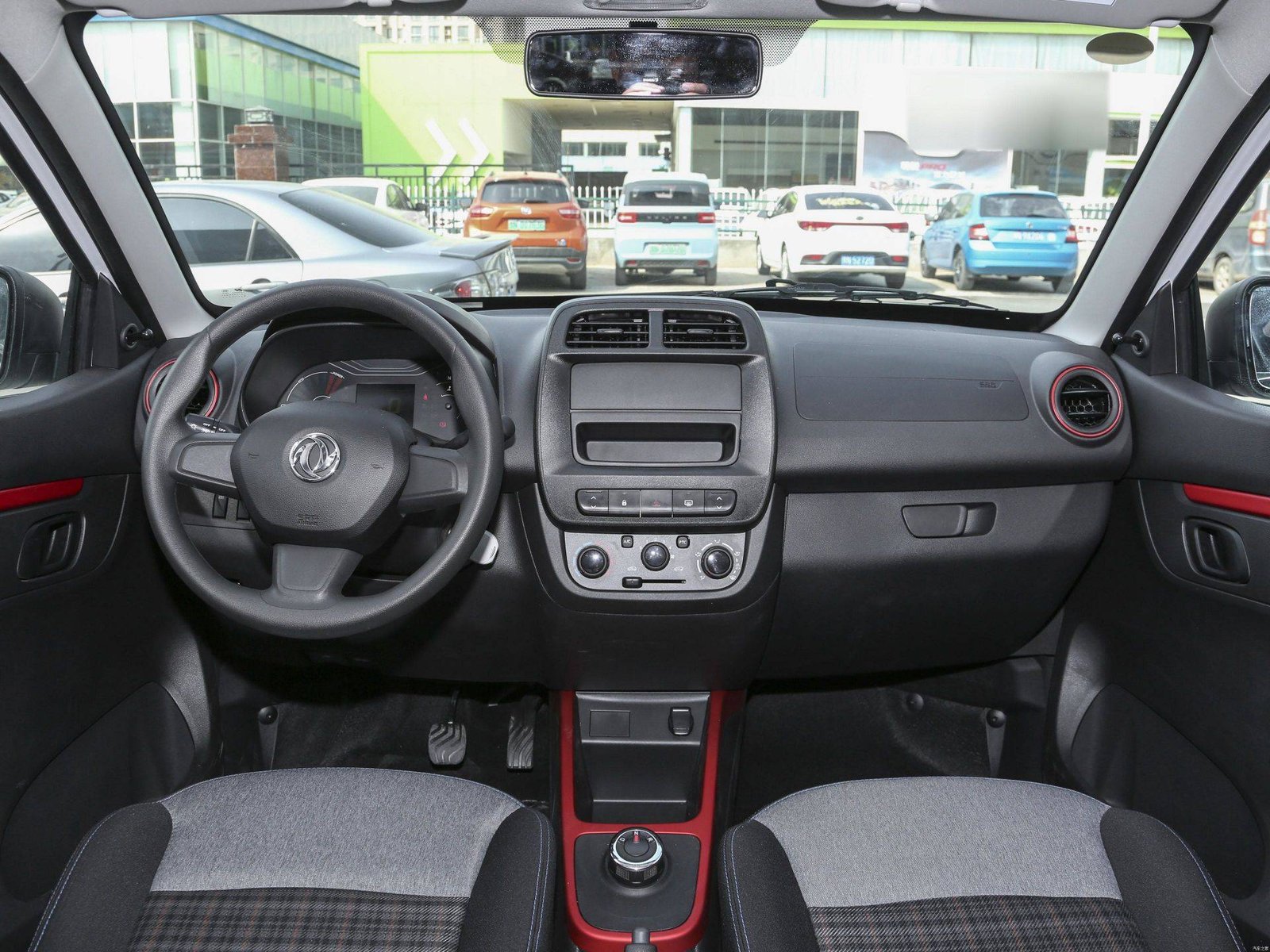

The Dongfeng Nano EX1 features a minimalist style, with a dark-toned Interior accented with orange elements to create a youthful and sporty feel. The seats are made of a patchwork of fabric and imitation leather, and the knob shift and traditional handbrake are designed to reflect its practicality.
Performance

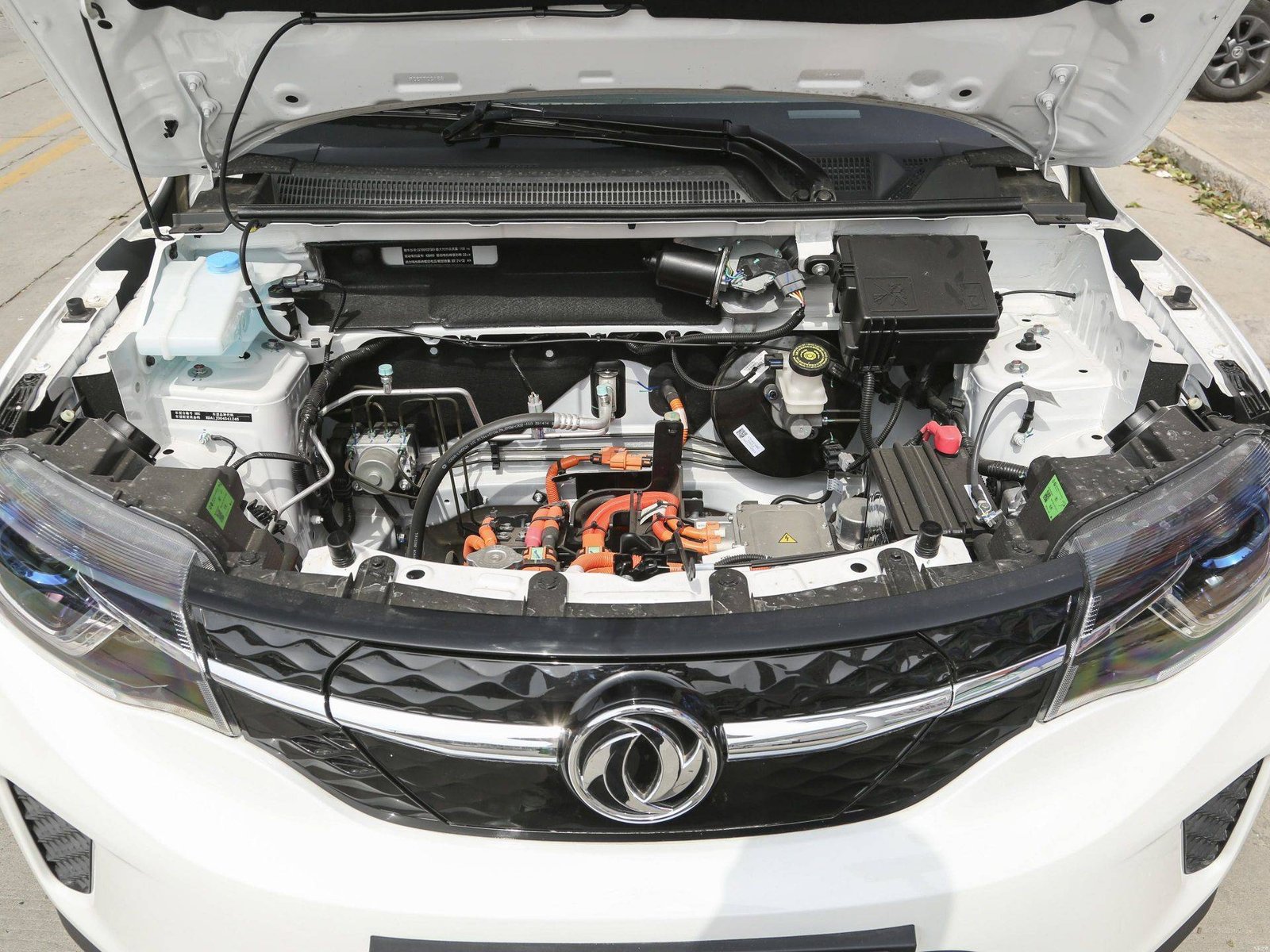

The Dongfeng Nano EX1 is powered by a permanent magnet synchronous motor with a maximum power of 33kW and a maximum torque of 125N-m, providing good power performance. The battery capacity is 26.8kWh, and the NEDC combined range is up to 301km, meeting the needs of daily commuting and short-distance traveling.
Configuration
The Dongfeng Nano EX1 offers a wealth of options, including standard features such as main and passenger airbags, tire pressure monitoring, remote key and manual air conditioning. Some models also offer an 8-inch touchscreen LCD, voice recognition, Telematics, and even OTA upgrades to meet modern drivers’ needs for intelligence.
PRO Lightwind Lightning | |
---|---|
Basic vehicle parameters | |
Level: | compact car |
Time to market: | 23-Mar |
Body form: | 5-door, 4-seat SUV/Crossover |
L x W x H (mm): | 3732x1579x1515 |
Wheelbase (mm): | 2423 |
Power Type: | all-electric |
Maximum power of the whole vehicle (kW): | 33 |
Maximum torque of the whole vehicle (N-m): | 125 |
Official top speed (km/h): | 100 |
Fast charging time (hours): | 0.5 |
Slow charging time (hours): | 3 |
MITI pure electric range (km): | 201 |
Maintenance intervals: | --- |
Warranty Policy: | 3 years/60,000 kilometers for the entire vehicle |
body of automobile | |

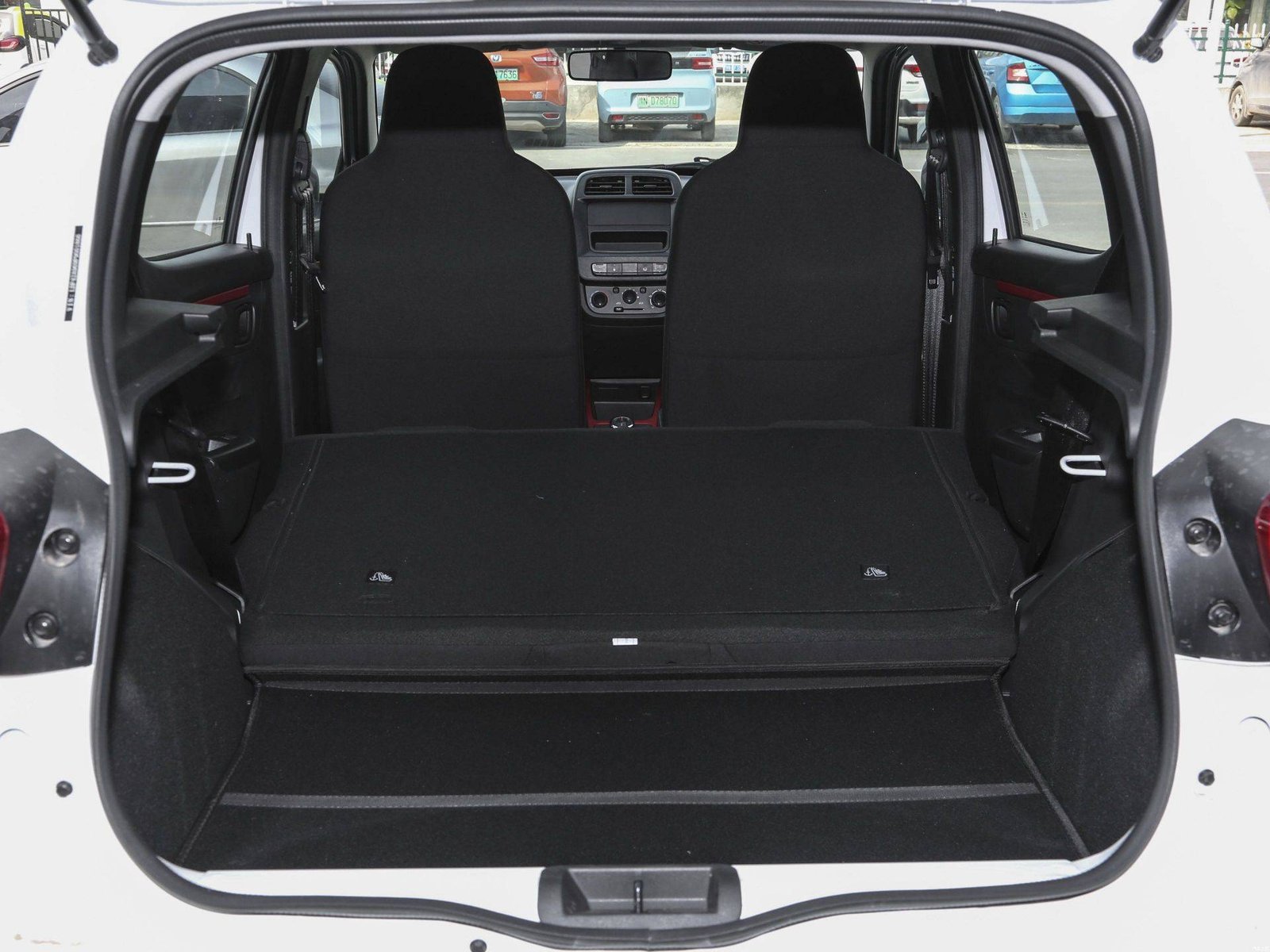

Luggage compartment volume (L): | 300-1107 |
Overall mass (kg): | 872 |
Minimum Ground Clearance (mm): | 150 |
Approach angle (°): | 23 |
Departure angle (°): | 32 |
electric motor | |
MITI pure electric range (km): | 201 |
Motor Type: | Permanent magnet/synchronous |
Total motor power (kW): | 33 |
Total motor torque (N-m): | 125 |
Number of motors: | 1 |
Motor Layout: | preamplifier |
Maximum power of front electric motor (kW): | 33 |
Maximum torque of front motor (N-m): | 125 |
Battery type: | lithium iron phosphate battery |
Battery capacity (kWh): | 15.974 |
100km power consumption (kWh/100km): | 9.3 |
Battery Pack Warranty: | 8 years/120,000 kilometers |
Charging compatibility: | Dedicated charging post + public charging post |
Charging method: | Fast charging + slow charging |
Fast charging time (hours): | 0.5 |
Slow charging time (hours): | 3 |
Fast charging volume (%): | 80 |
transmission | |
Number of gears: | 1 |
Transmission Type: | Electric Vehicle Single Speed |
Chassis steering | |
Drive method: | front drive |
Body Structure: | Load-bearing body |
Steering Assist: | electric power assist |
Front suspension type: | MacPherson independent suspension |
Rear suspension type: | Torsion beam non-independent suspension |
Wheel brakes | |
Front brake type: | disk |
Rear brake type: | drum |
Parking brake type: | Hand Brake |

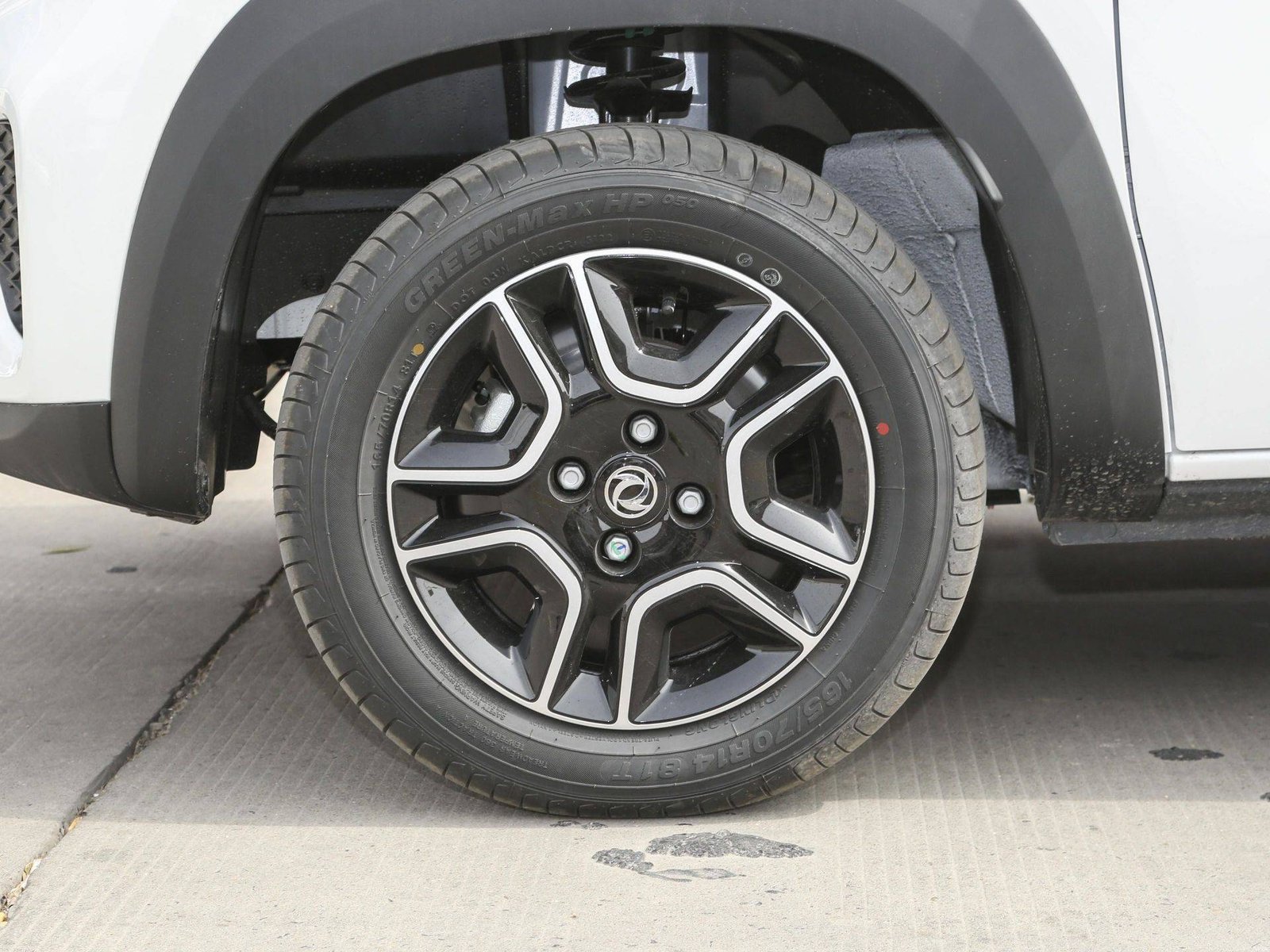

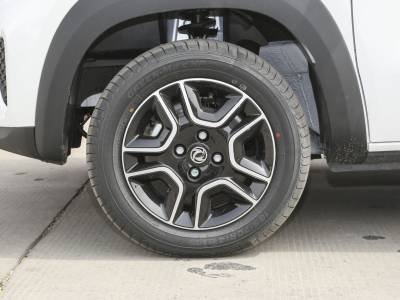

Front Tire Specifications: | 165/70 R14 |
Rear Tire Specifications: | 165/70 R14 |
Wheel material: | steel (bar, screw, product etc) |
Spare tire specification: | not have |
safety equipment | |

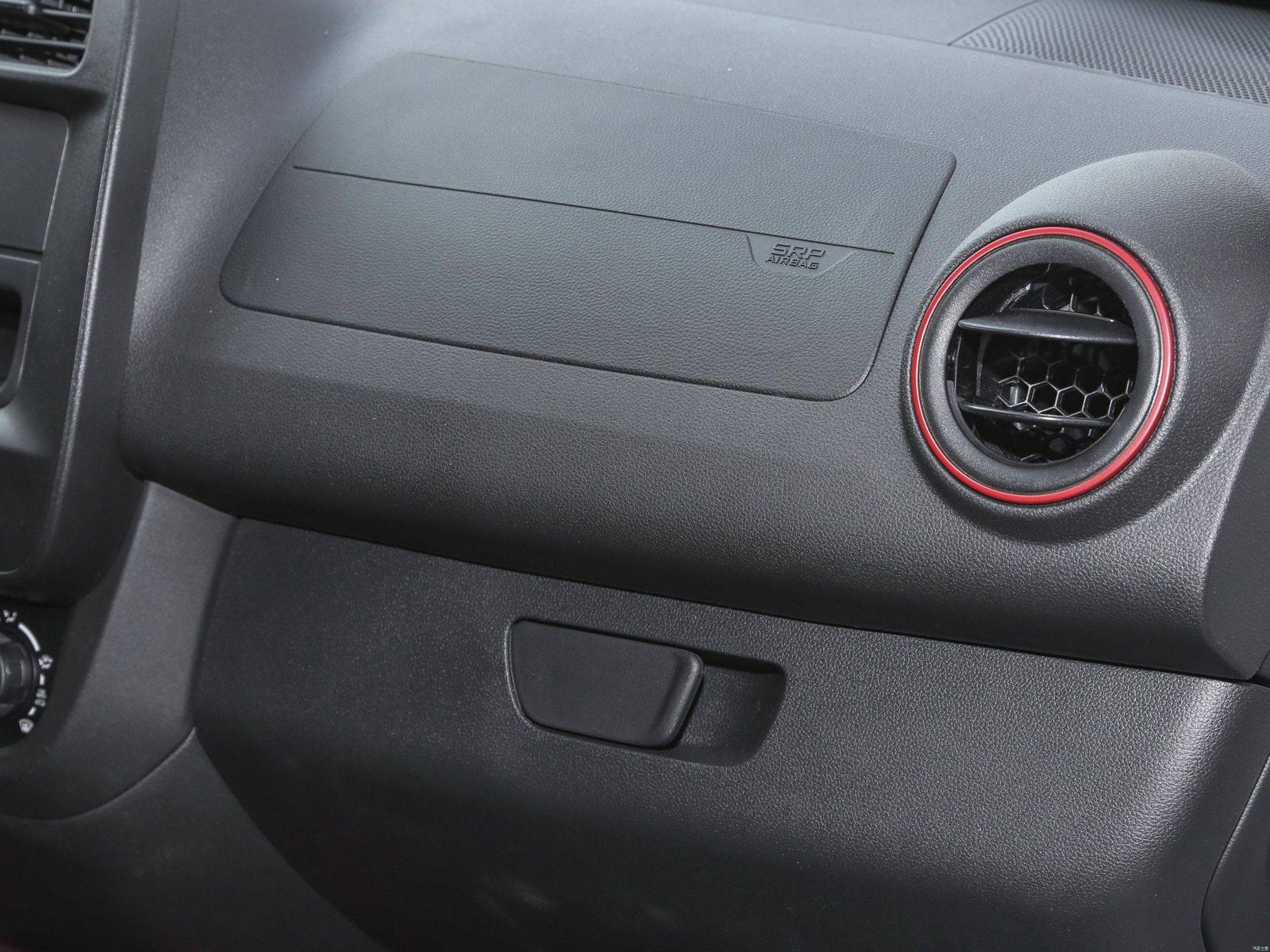

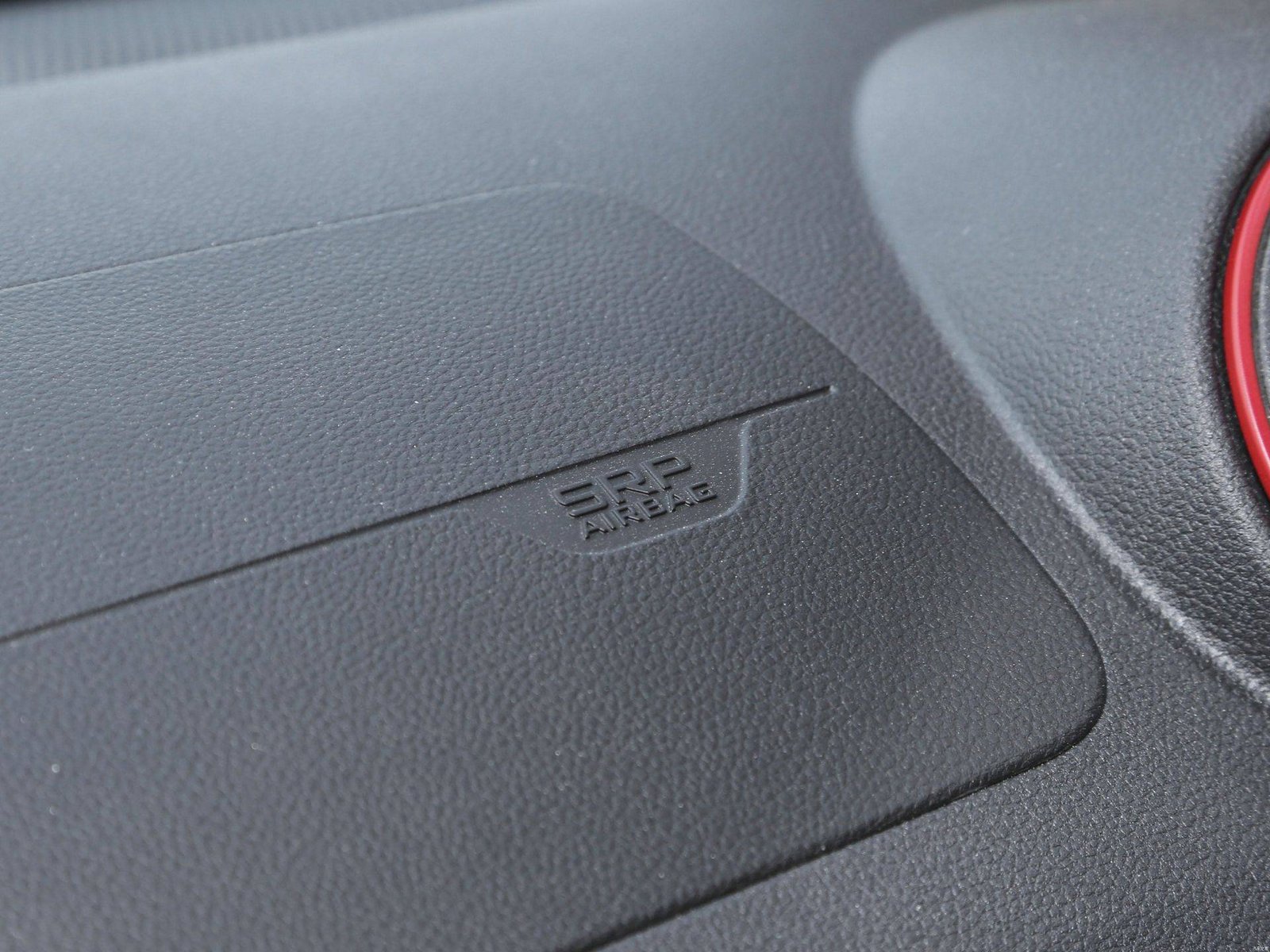

Primary/passenger airbags: | Main ●/Sub ● |
Seatbelt not fastened tip: | ● |
ISO FIX child seat interface: | ● |
Tire pressure monitoring device: | Tire Pressure Alarm |
Automatic anti-lock (ABS, etc.): | ● |
Brake Power Distribution | ● |
Center lock in the car: | ● |
Remote key: | ● |
Body Features/Configurations | |
Roof racks: | ● |
Interior Features/Configurations | |
Steering wheel material: | :: Plastics |
Separate power connector in the car: | ●12V |

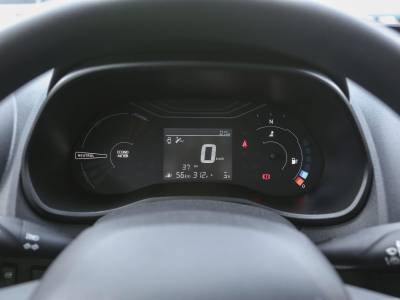

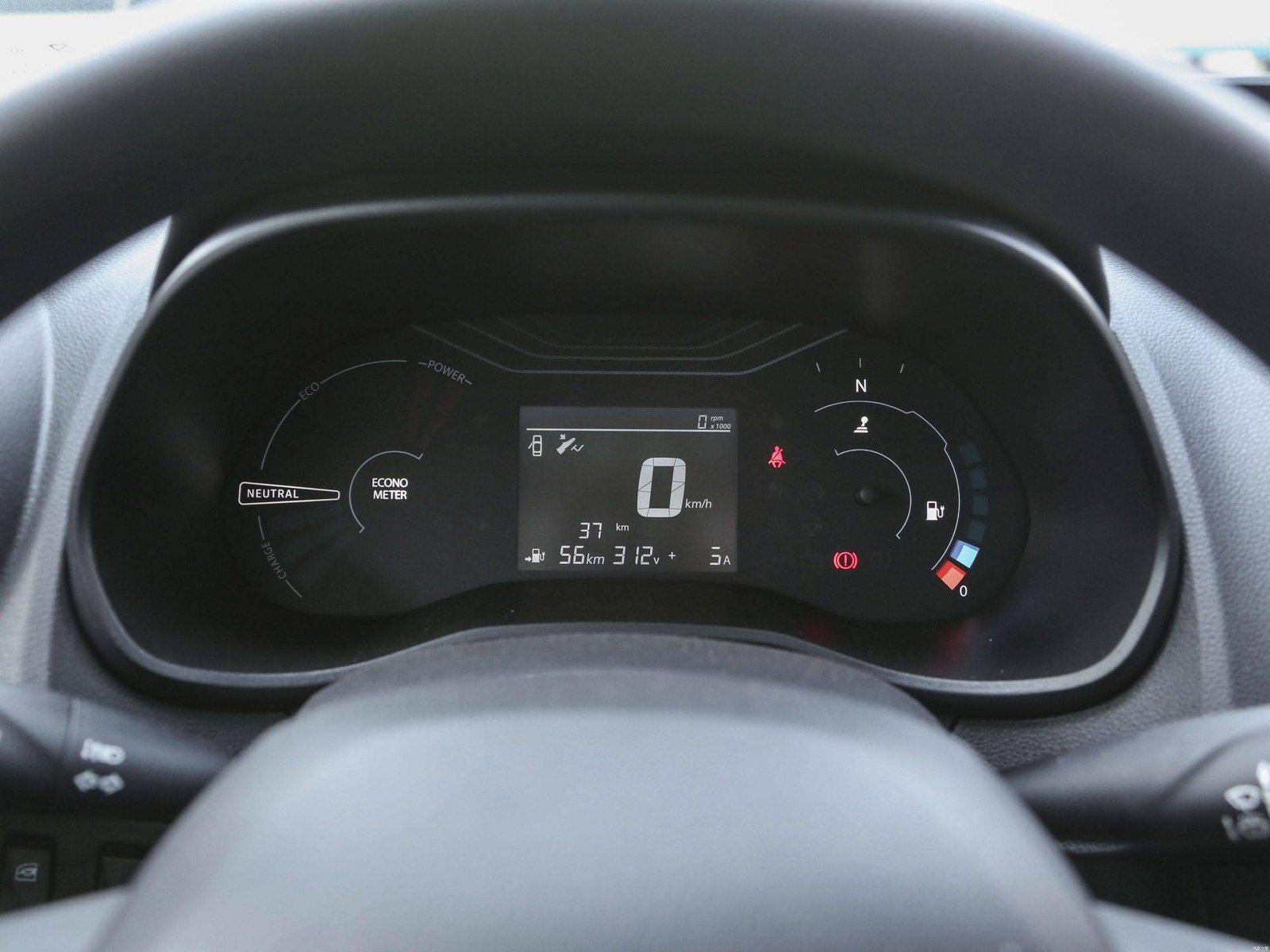

The trip computer display: | ● |
Seat Configuration | |
Seat Material: | :: Fabrics |

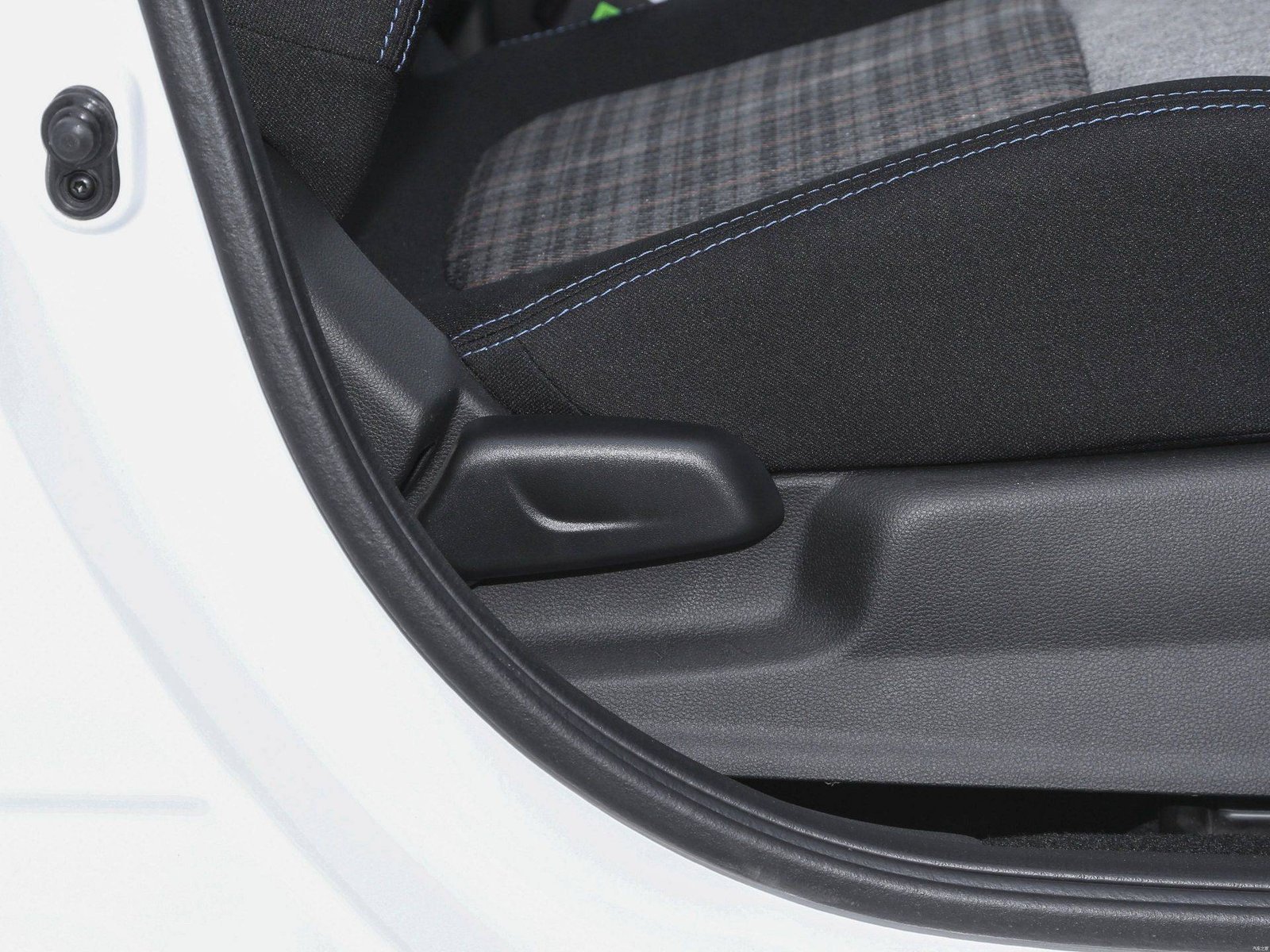

Main driver's seat adjustment direction: | ●Forward and backward adjustment |
Backrest adjustment | |
Passenger seat adjustment direction: | ●Forward and backward adjustment |
Backrest adjustment | |
The way the rear seats are lowered: | Only the whole thing can be put down |
Lighting Configuration | |
Low beam light source: | ● Halogen |
High beam light source: | ● Halogen |
Height adjustable headlights: | ● |
Windows and mirrors | |
Front/rear power windows: | Front ●/Rear ● |
Interior vanity mirrors: | ●Passenger seat |
Air conditioners/refrigerators | |

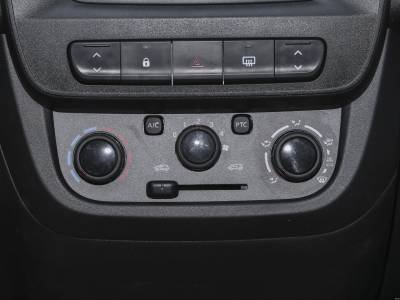

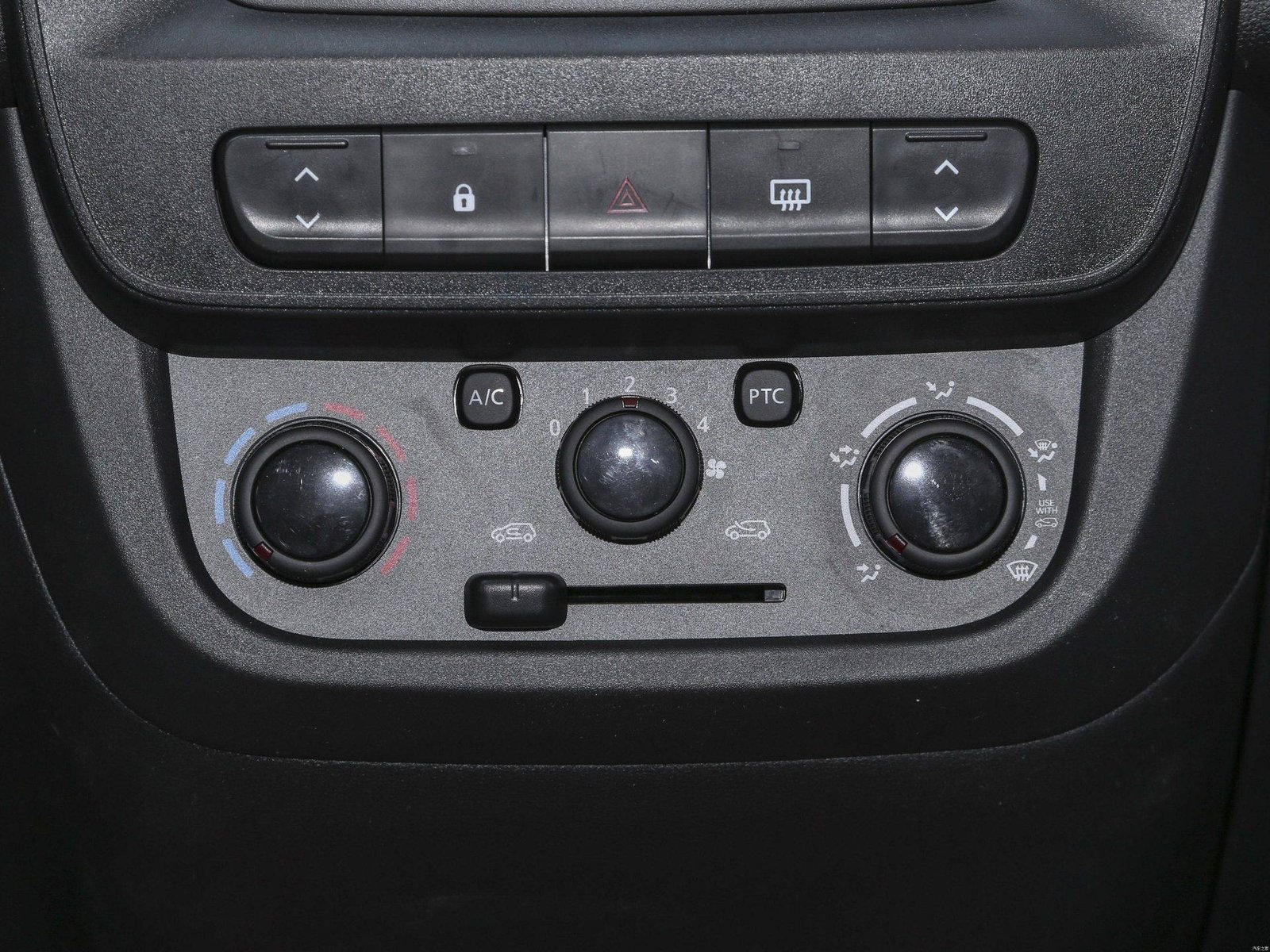

Air conditioning temperature control method: | ●Manual air conditioning |
